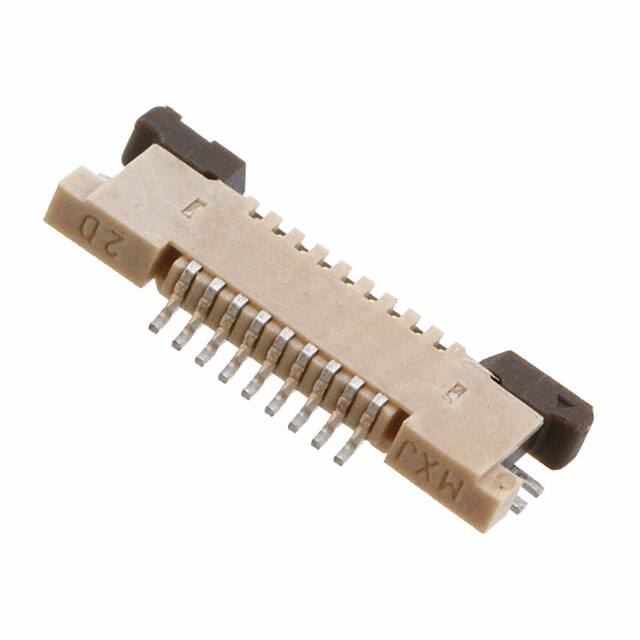

0545500971

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Çalışma Sıcaklığı

-20°C~85°C

Sıra Sayısı

1

Locking Feature

Slide Lock

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Nominal Gerilim

50V

Option

GENERAL PURPOSE

Seri

Easy-On 54550

Montaj Tipi

Surface Mount, Right Angle

Flat Flex Type

FFC, FPC

Contact Gender

FEMALE

Kurşunsuz Kodu

yes

Terminal

Solder

Ambalaj

Tape & Reel (TR)

Contact Materials

Phosphor Bronze

Mixed Contacts

NO

Total Number Of Contacts

9

Contact Finish

Gold

JESD-609 Kodu

e3

Height Above Board

0.047 1.20mm

Filter Feature

NO

Housing Material

Liquid Crystal Polymer (LCP)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

9

Fabrika Tedarik Süresi

18 Weeks

Connector Type

FFC/FPC CONNECTOR

Ffc Fcb Thickness

0.30mm

Iec Conformance

NO

Current Rating Amps

0.5A

Mating Cycles

20

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Pitch

0.020 0.50mm

Cable End Type

Straight, Tapered
