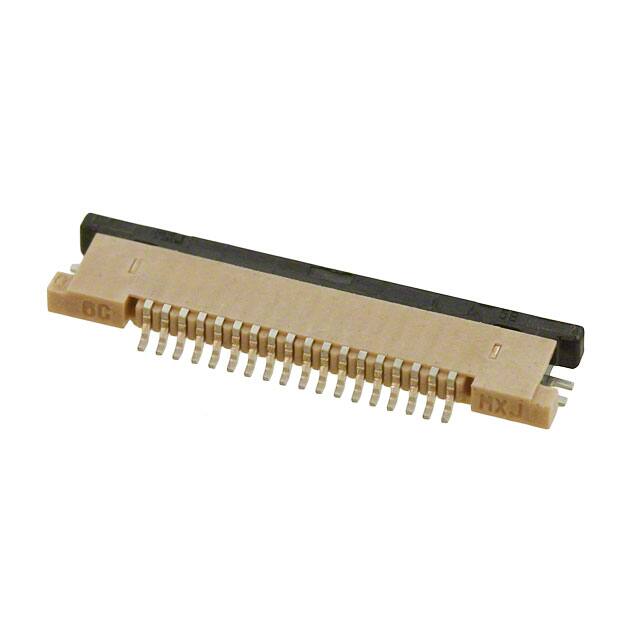

0545481871

Teknik Özellikler

Fabrika Tedarik Süresi

18 Weeks

Connector Type

FFC/FPC CONNECTOR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Height Above Board

0.047 1.20mm

Housing Material

Liquid Crystal Polymer (LCP)

JESD-609 Kodu

e3

Akım Değeri

500mA

Number Of Contacts

18

Stackable

No

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Cable End Type

Straight, Tapered

Pitch

0.020 0.50mm

Parça Durumu

Active

Mating Cycles

20

Current Rating Amps

0.5A

RoHS Durumu

ROHS3 Compliant

Iec Conformance

NO

Ffc Fcb Thickness

0.30mm

Seri

Easy-On 54548

Montaj Tipi

Surface Mount, Right Angle

Option

GENERAL PURPOSE

Nominal Gerilim

50V

Actuator Material

Polyphenylene Sulfide (PPS)

Sıra Sayısı

1

Çalışma Sıcaklığı

-20°C~85°C

Gender

Receptacle

Mil Conformance

NO

Elv

Compliant

Locking Feature

Flip Lock

Material

Bronze

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Contact Finish

Gold

Mixed Contacts

NO

Contact Materials

Phosphor Bronze

Terminal

Solder

Ambalaj

Tape & Reel (TR)

Kurşunsuz Kodu

yes

Orientation

Right Angle
