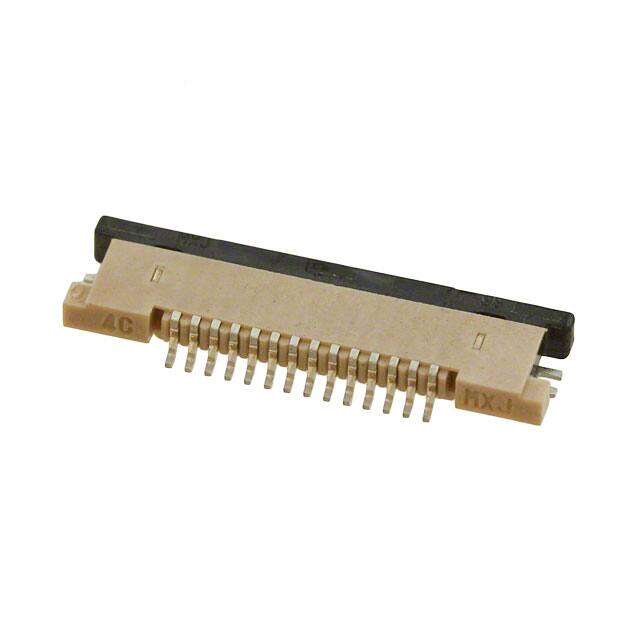

0545481471

Teknik Özellikler

Material

Bronze

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Çalışma Sıcaklığı

-20°C~85°C

Sıra Sayısı

1

Locking Feature

Flip Lock

Mil Conformance

NO

Elv

Compliant

Gender

Receptacle

Actuator Material

Polyphenylene Sulfide (PPS)

Option

GENERAL PURPOSE

Seri

Easy-On 54548

Montaj Tipi

Surface Mount, Right Angle

Flat Flex Type

FFC, FPC

Reach Svhc

Unknown

Orientation

Right Angle

Terminal

Solder

Ambalaj

Tape & Reel (TR)

Mixed Contacts

NO

Contact Materials

Phosphor Bronze

Lead Pitch

500μm

Contact Finish

Gold

JESD-609 Kodu

e3

Akım Değeri

500mA

Height Above Board

0.047 1.20mm

Filter Feature

NO

Housing Material

Liquid Crystal Polymer (LCP)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Rated Dc

50V

Fabrika Tedarik Süresi

18 Weeks

Connector Type

FFC/FPC CONNECTOR

Ffc Fcb Thickness

0.30mm

Iec Conformance

NO

Mating Cycles

20

Current Rating Amps

0.5A

Parça Durumu

Active

Insulation Resistance

50MOhm

RoHS Durumu

ROHS3 Compliant

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Pitch

0.020 0.50mm
