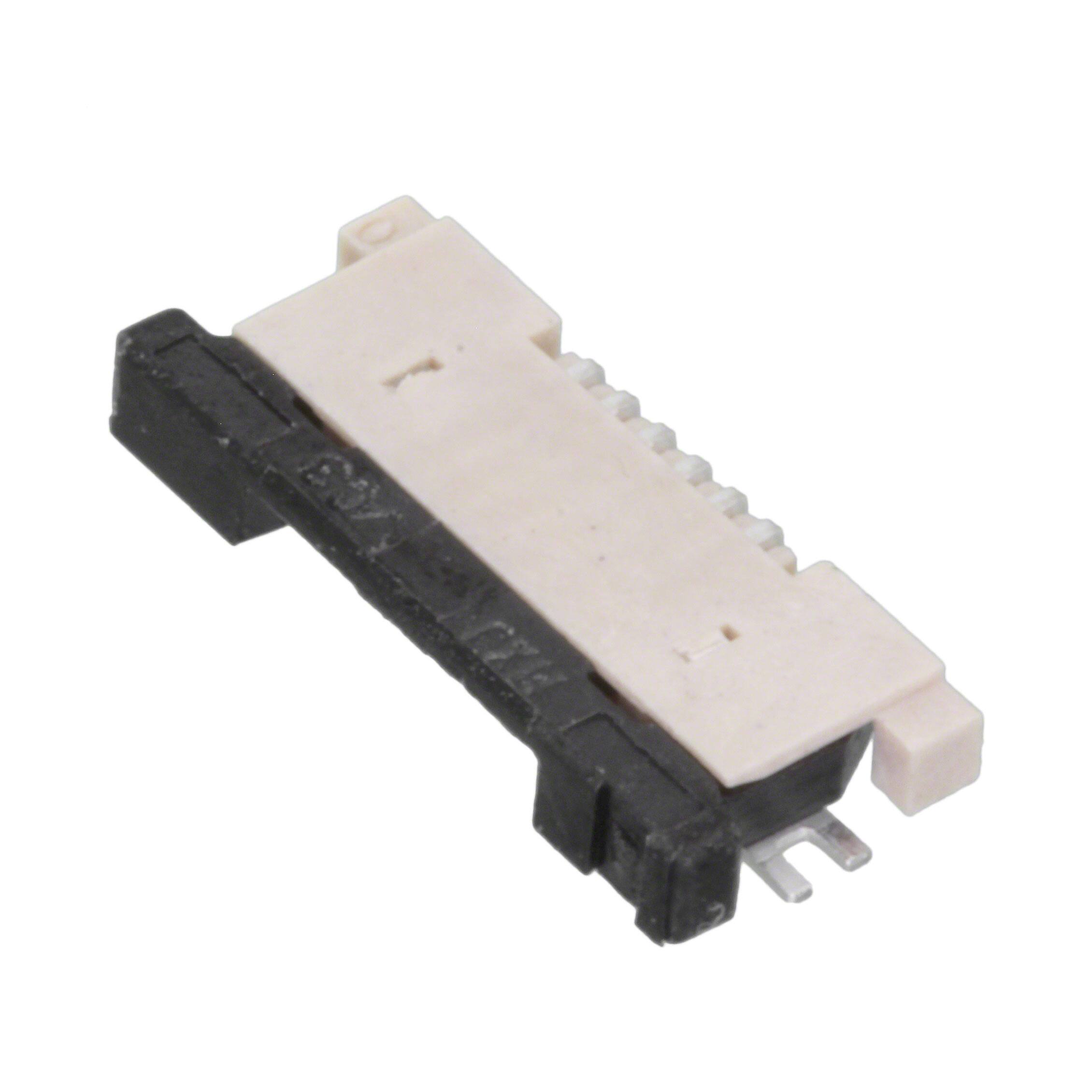

0545480671

Teknik Özellikler

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Cable End Type

Straight, Tapered

Pitch

0.020 0.50mm

Parça Durumu

Active

Current Rating Amps

0.5A

Mating Cycles

20

RoHS Durumu

ROHS3 Compliant

Iec Conformance

NO

Ffc Fcb Thickness

0.30mm

Fabrika Tedarik Süresi

18 Weeks

Connector Type

FFC/FPC CONNECTOR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

6

Filter Feature

NO

Height Above Board

0.047 1.20mm

Housing Material

Liquid Crystal Polymer (LCP)

JESD-609 Kodu

e3

Contact Finish

Gold

Total Number Of Contacts

6

Mixed Contacts

NO

Contact Materials

Phosphor Bronze

Terminal

Solder

Ambalaj

Tape & Reel (TR)

Kurşunsuz Kodu

yes

Contact Gender

FEMALE

Flat Flex Type

FFC, FPC

Seri

Easy-On 54548

Montaj Tipi

Surface Mount, Right Angle

Option

GENERAL PURPOSE

Nominal Gerilim

50V

Actuator Material

Polyphenylene Sulfide (PPS)

Sıra Sayısı

1

Çalışma Sıcaklığı

-20°C~85°C

Mil Conformance

NO

Locking Feature

Flip Lock

Din Conformance

NO

Material Flammability Rating

UL94 V-0
