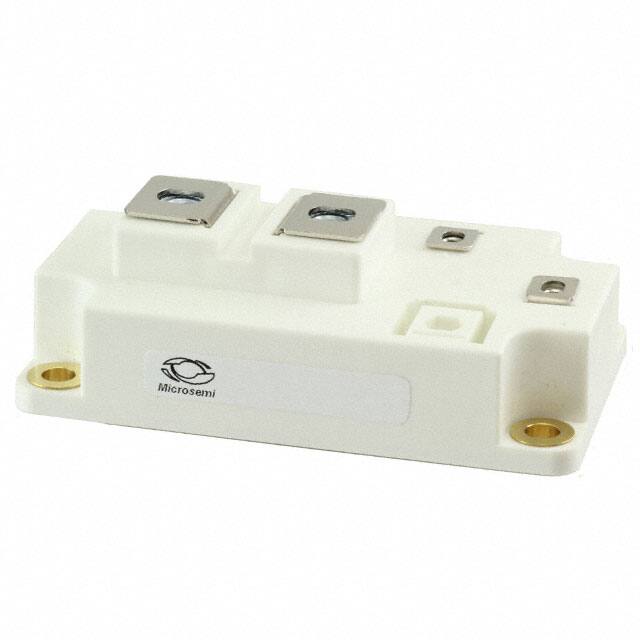

APTGT600U120D4G

Teknik Özellikler

Terminal Formu

UNSPECIFIED

Input Capacitance

40nF

Current Collector Cutoff Max

5mA

Collectoremitter Breakdown Voltage

1.2kV

Ihs Manufacturer

MICROSEMI CORP

Lifecycle Status

IN PRODUCTION (Last Updated: 3 weeks ago)

Kılıf / Paket

D4

Transistor Element Material

SILICON

Input Capacitance Cies Vce

40nF @ 25V

Reflow Temperaturemax S

NOT SPECIFIED

Paket

Bulk

Üretici Parça No

APTGT600U120D4G

Risk Rank

1.56

Pin Sayısı

4

Turnon Timenom Ton

400 ns

Igbt Type

Trench Field Stop

Transistor Application

MOTOR CONTROL

Package Shape

RECTANGULAR

Yayın Yılı

2011

Parça Durumu

Active

Ürün Durumu

Active

Turn On Time

400 ns

RoHS Durumu

RoHS Compliant

Operating Temperaturemax

150 °C

Polaritychannel Type

N-CHANNEL

Pd Power Dissipation

2.5 kW

Montaj Tipi

Chassis Mount

Terminal Pozisyonu

UPPER

Qualification Status

Not Qualified

Jesd30 Code

R-XUFM-X4

Turn Off Timenom Toff

830 ns

Max Collector Current

900A

Tedarikçi Cihaz Paketi

D4

Part Package Code

MODULE

Power Dissipation

2.5

Configuration

Single

Collector Emitter Voltage Vceo

1.2kV

Moisture Sensitivity Levels

1

Kurşunsuz Kodu

yes

Turnoff Timenom Toff

830 ns
