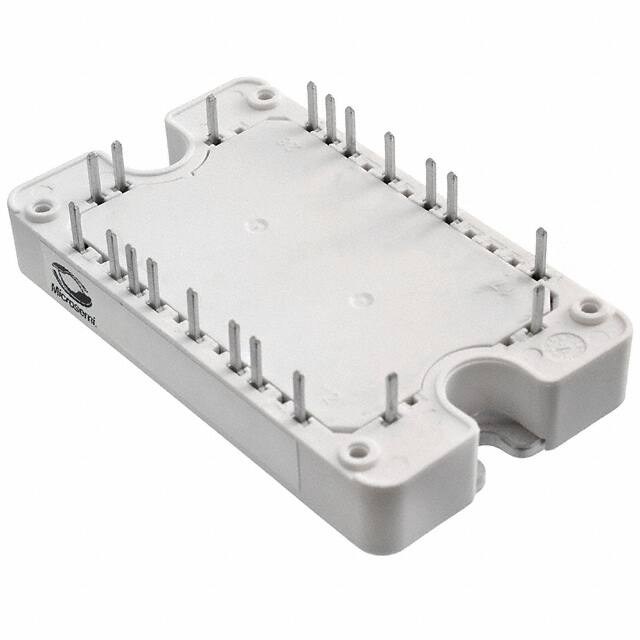

APTGT50H60RT3G

Teknik Özellikler

Vceon Max Vge Ic

1.9V @ 15V, 50A

Temel Ürün No

APTGT50

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

36 Weeks

Maks. Çalışma Sıcaklığı

+ 100 C

Pin Sayısı

32

Power Max

176 W

Voltage Collector Emitter Breakdown Max

600 V

Max Power Dissipation

176W

Fabrika Paket Adedi

1

ECCN Kodu

EAR99

Collectoremitter Saturation Voltage

1.5 V

Minimum Operating Temperature

- 40 C

Continuous Collector Current At25 C

80 A

Continuous Collector Current

80

Ntc Thermistor

Yes

Collector Emitter Voltage Vceo Max

600 V

Montaj

Chassis Mount, Screw

RoHS

Details

Input

Single Phase Bridge Rectifier

Number Of Elements

1

Currentcollector Ic Max

80 A

Gateemitter Leakage Current

600 nA

Montaj Stili

Chassis Mount

Collectoremitter Breakdown Voltage

600V

Maximum Gate Emitter Voltage

20 V

Input Capacitance Cies Vce

3.15nF @ 25V

Kılıf / Paket

SP3

Input Capacitance

3.15nF

Vcesatmax

1.9 V

Current Collector Cutoff Max

250μA

Igbt Type

Trench Field Stop

Ürün Durumu

Active

Parça Durumu

Active

Yayın Yılı

1999

Min. Çalışma Sıcaklığı

-40°C

Radyasyon Dayanımı

No

Paket

Bulk

Ambalaj

Tube

Gateemitter Voltagemax

20V
