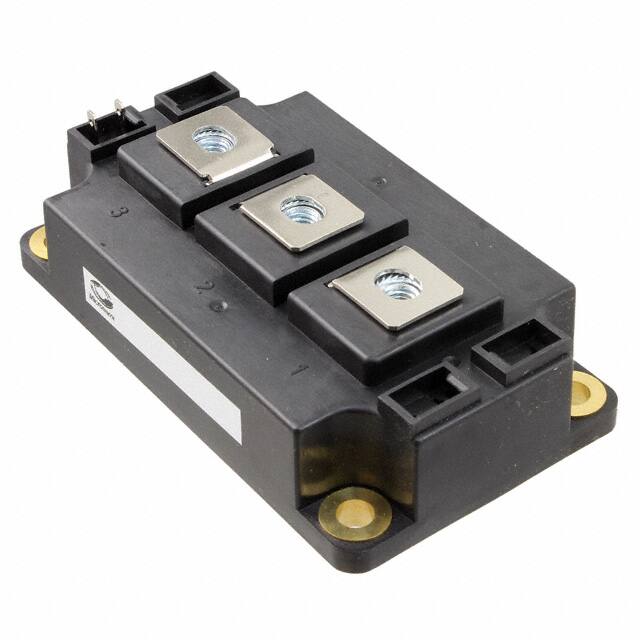

APTGT400DA60D3G

Teknik Özellikler

Configuration

Single

Tedarikçi Cihaz Paketi

D3

Collector Emitter Voltage Vceo

1.9V

Pd Power Dissipation

1.25 kW

Polaritychannel Type

N-CHANNEL

RoHS Durumu

RoHS Compliant

Turn On Time

190 ns

Jesd30 Code

R-XUFM-X5

Turn Off Timenom Toff

600 ns

Max Collector Current

500A

Terminal Pozisyonu

UPPER

Gateemitter Voltagemax

20V

Montaj Tipi

Chassis Mount

Radyasyon Dayanımı

No

Paket

Bulk

Ambalaj

Bulk

Parça Durumu

Active

Ürün Durumu

Active

Yayın Yılı

2012

Transistor Application

MOTOR CONTROL

Igbt Type

Trench Field Stop

Pin Sayısı

11

Current Collector Cutoff Max

500μA

Input Capacitance

24nF

Terminal Formu

UNSPECIFIED

Maximum Gate Emitter Voltage

20 V

Input Capacitance Cies Vce

24nF @ 25V

Transistor Element Material

SILICON

Lifecycle Status

Production (Last Updated: 2 months ago)

Kılıf / Paket

D-3 Module

Collectoremitter Breakdown Voltage

600V

Terminal Sayısı

5

Gateemitter Leakage Current

400 nA

Montaj Stili

Chassis Mount

Currentcollector Ic Max

500 A

Number Of Elements

1

Case Connection

ISOLATED

Collector Emitter Voltage Vceo Max

600 V

Input

Standard

Montaj

Chassis Mount, Screw
