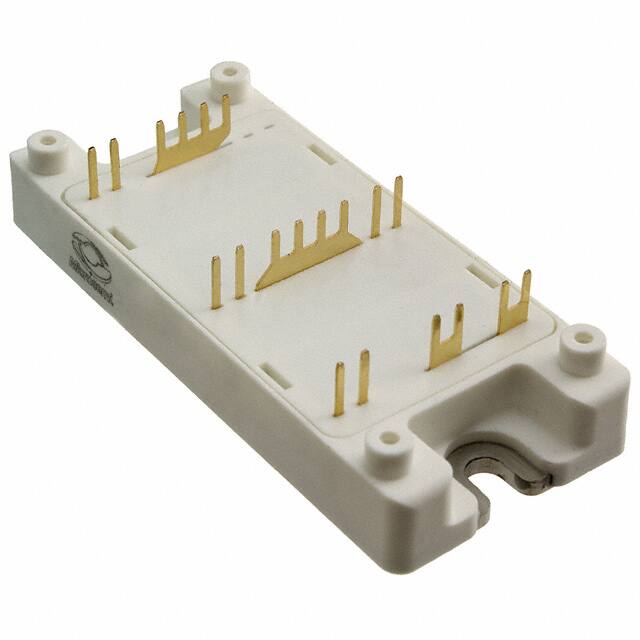

APTGT300A60TG

Teknik Özellikler

Continuous Collector Current At25 C

430 A

Continuous Collector Current

430

Collectoremitter Saturation Voltage

1.5

Minimum Operating Temperature

- 40 C

Collector Emitter Voltage Vceo Max

600 V

Montaj

Chassis Mount, Screw

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Input

Standard

Collectoremitter Voltagemax

600 V

Ntc Thermistor

Yes

Collector Currentmax Ic

430 A

Case Connection

ISOLATED

Number Of Elements

2

Currentcollector Ic Max

430 A

Package Body Material

UNSPECIFIED

Number Of Terminals

9

Terminal Sayısı

9

Part Life Cycle Code

Active

Montaj Stili

Chassis Mount

Element Configuration

Dual

Vceon Max Vge Ic

1.9V @ 15V, 300A

Temel Ürün No

APTGT300

Package Description

FLANGE MOUNT, R-XUFM-X9

Çalışma Sıcaklığı

-40°C~175°C TJ

Nem Hassasiyeti (MSL)

1 (Unlimited)

REACH Uyumluluk Kodu

compliant

Turn On Delay Time

115 ns

Turnoff Timenom Toff

370 ns

Fabrika Tedarik Süresi

36 Weeks

Rohs Code

Yes

Package Style

FLANGE MOUNT

Turn Off Delay Time

225 ns

ECCN Kodu

EAR99

Yüzey Montaj

NO

Maks. Çalışma Sıcaklığı

+ 100 C

Pin Sayısı

10

Power Max

935W

Voltage Collector Emitter Breakdown Max

600 V

Max Power Dissipation

935W

Jesd30 Code

R-XUFM-X9
