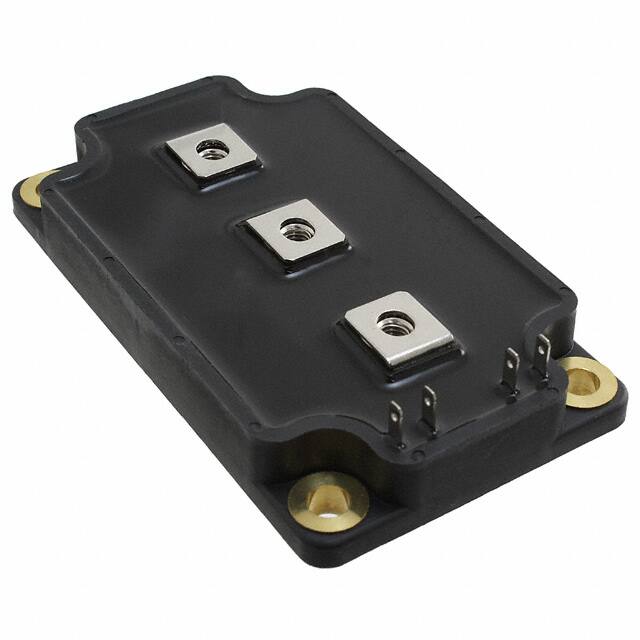

APTGT150DU120G

Teknik Özellikler

Additional Feature

AVALANCHE RATED

REACH Uyumluluk Kodu

compliant

Jesd30 Code

R-XUFM-X7

Voltage Collector Emitter Breakdown Max

1200V

Input Capacitance

10.7nF

Terminal Sayısı

7

Package Style

FLANGE MOUNT

Continuous Collector Current At25 C

220 A

Minimum Operating Temperature

- 40 C

Ihs Manufacturer

MICROSEMI CORP

Turn Off Timenom Toff

610 ns

Fabrika Tedarik Süresi

36 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Moisture Sensitivity Levels

1

ECCN Kodu

EAR99

Configuration

Dual, Common Source

Min. Çalışma Sıcaklığı

-40°C

Power Max

690 W

Transistor Element Material

SILICON

Part Life Cycle Code

Active

Reflow Temperaturemax S

NOT SPECIFIED

Terminal Pozisyonu

UPPER

Operating Temperaturemax

150 °C

Pd Power Dissipation

690 W

Rohs Code

Yes

Yüzey Montaj

NO

Currentcollector Ic Max

220 A

Input

Standard

Max Collector Current

220A

Kılıf / Paket

SP6

Ürün Durumu

Active

Temel Ürün No

APTGT150

Collector Emitter Voltage Vceo Max

1.2 kV

Terminal Kaplaması

TIN SILVER COPPER

Package Body Material

UNSPECIFIED

Kurşunsuz Kodu

yes

Input Capacitance Cies Vce

10.7nF @ 25V

Risk Rank

5.14

Number Of Elements

2

Montaj Stili

Chassis Mount
