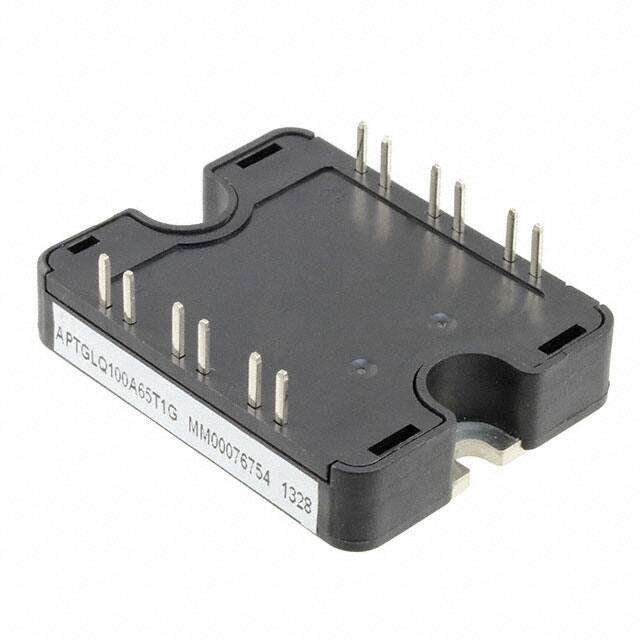

APTGLQ100A65T1G

Teknik Özellikler

Input Capacitance Cies Vce

6nF @ 25V

Gateemitter Leakage Current

150 nA

Collector Emitter Voltage Vceo Max

650 V

Temel Ürün No

APTGLQ100

Kurşunsuz

Lead Free

Ürün Durumu

Active

Kılıf / Paket

SP1

Birim Ağırlık

2.821917 oz

Input

Standard

Max Collector Current

200A

Turn Off Delay Time

197 ns

Currentcollector Ic Max

200 A

Ambalaj

Tube

Pd Power Dissipation

350 W

Çalışma Sıcaklığı

-40°C~175°C TJ

Gateemitter Voltagemax

20V

Power Max

350W

Configuration

Half Bridge

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

36 Weeks

Minimum Operating Temperature

- 40 C

Continuous Collector Current At25 C

135 A

Input Capacitance

6nF

Fabrika Paket Adedi

1

Voltage Collector Emitter Breakdown Max

650 V

Collectoremitter Breakdown Voltage

650V

Igbt Type

Trench Field Stop

Pin Sayısı

1

RoHS

Details

Montaj Tipi

Through Hole

Maximum Gate Emitter Voltage

20 V

RoHS Durumu

RoHS Compliant

Yayın Yılı

2013

Current Collector Cutoff Max

100μA

Turn On Delay Time

19 ns

Maks. Çalışma Sıcaklığı

+ 125 C

Tedarikçi Cihaz Paketi

SP1

Max Power Dissipation

350W

Collectoremitter Saturation Voltage

1.85 V

Vceon Max Vge Ic

2.3V @ 15V, 100A
