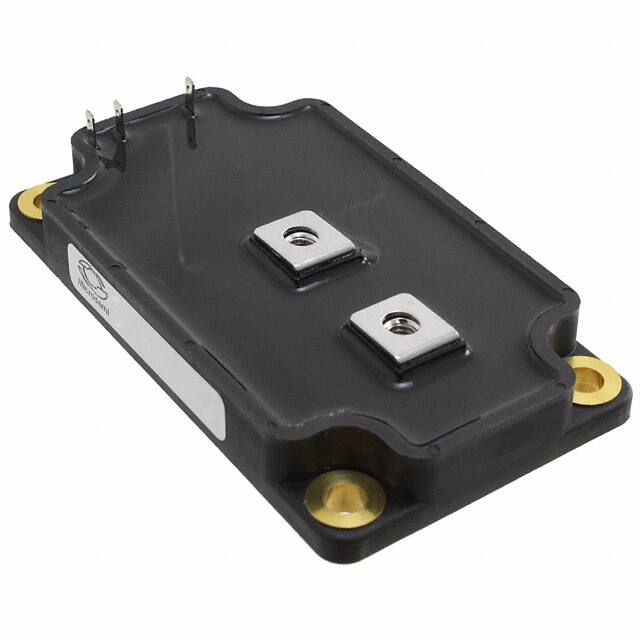

APTGL475U120DAG

Teknik Özellikler

Montaj Tipi

Chassis Mount

RoHS Durumu

RoHS Compliant

Maximum Gate Emitter Voltage

20 V

Yayın Yılı

1999

Current Collector Cutoff Max

4mA

Tedarikçi Cihaz Paketi

SP6

Maks. Çalışma Sıcaklığı

+ 100 C

Max Power Dissipation

2.307kW

Üretici Parça No

APTGL475U120DAG

Collectoremitter Breakdown Voltage

1.2kV

Igbt Type

Trench Field Stop

Pin Sayısı

5

RoHS

Details

Collectoremitter Voltagemax

1200 V

Power Dissipationmax Abs

2307 W

Continuous Collector Current

610

Collector Emitter Voltage Vceo

1.2kV

Ntc Thermistor

No

Number Of Elements

1

Montaj Stili

Chassis Mount

Risk Rank

5.69

Collectoremitter Saturation Voltage

1.8 V

Collector Currentmax Ic

610 A

Montaj

Chassis Mount, Screw

Vceon Max Vge Ic

2.2V @ 15V, 400A

Parça Durumu

Active

Paket

Bulk

Ambalaj

Tube

Rohs Code

Yes

Pd Power Dissipation

2.307 kW

Operating Temperaturemax

175 °C

Input Capacitance Cies Vce

24.6nF @ 25V

Collector Emitter Voltage Vceo Max

1.2 kV

Temel Ürün No

APTGL475

Ürün Durumu

Active

Birim Ağırlık

3.880136 oz

Vcesatmax

2.2 V

Kılıf / Paket

SP6

Max Collector Current

610A

Input

Standard
