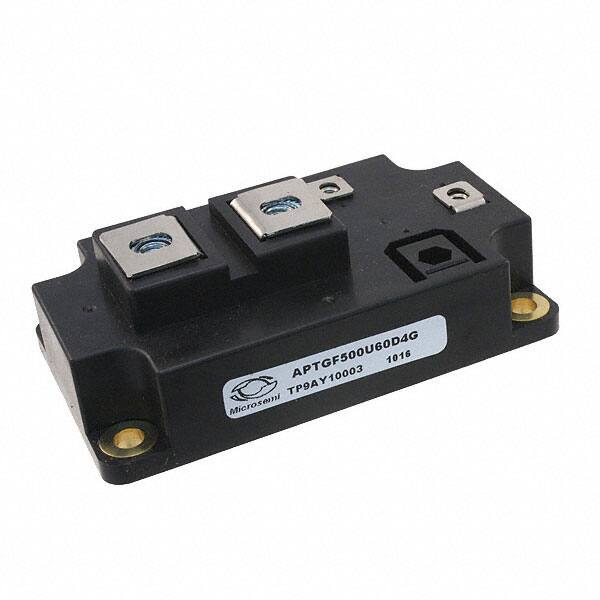

APTGF500U60D4G

Teknik Özellikler

Max Power Dissipation

2kW

Turnoff Timenom Toff

500 ns

Tedarikçi Cihaz Paketi

D4

Current Collector Cutoff Max

500μA

Case Connection

ISOLATED

Yayın Yılı

2005

Pin Sayısı

4

RoHS Durumu

RoHS Compliant

Polaritychannel Type

N-CHANNEL

Package Description

FLANGE MOUNT, R-XUFM-X4

Montaj Tipi

Chassis Mount

Collectoremitter Voltagemax

600 V

Turn On Time

285 ns

Turnon Timenom Ton

285 ns

Maks. Çalışma Sıcaklığı

150°C

Number Of Terminals

4

Pin Sayısı

4

Package Shape

RECTANGULAR

Collectoremitter Breakdown Voltage

600V

Igbt Type

NPT

Üretici Parça No

APTGF500U60D4G

Risk Rank

5.73

Number Of Elements

1

Qualification Status

Not Qualified

Ntc Thermistor

No

Collector Emitter Voltage Vceo

600V

Transistor Application

POWER CONTROL

Part Package Code

MODULE

Power Dissipationmax Abs

2200 W

Paket

Bulk

Parça Durumu

Obsolete

JESD-609 Kodu

e1

Vceon Max Vge Ic

2.45V @ 15V, 500A

Montaj

Chassis Mount, Screw

Collector Currentmax Ic

625 A

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Terminal Formu

UNSPECIFIED

Reflow Temperaturemax S

NOT SPECIFIED

Terminal Pozisyonu

UPPER

Operating Temperaturemax

150 °C
