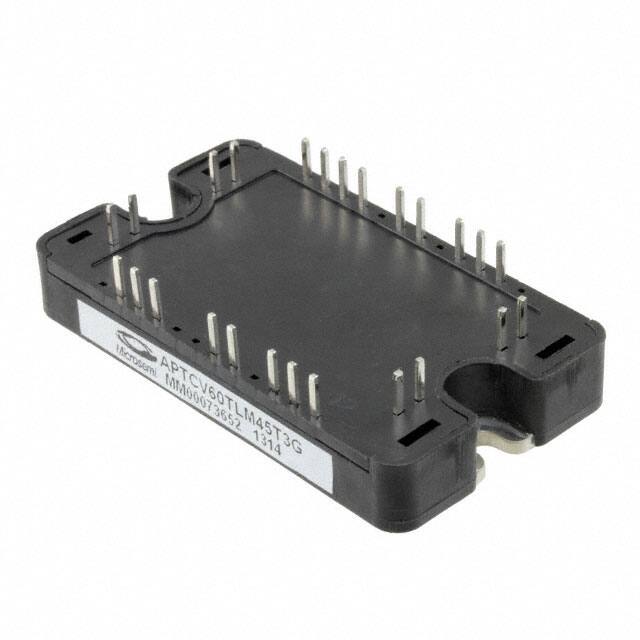

APTGF100A120T3AG

Teknik Özellikler

Transistor Application

POWER CONTROL

Power Dissipationmax Abs

780 W

Collector Emitter Voltage Vceo

1.2kV

Ntc Thermistor

Yes

Qualification Status

Not Qualified

Risk Rank

5.72

Number Of Elements

2

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Terminal Formu

UNSPECIFIED

Montaj

Chassis Mount, Screw

Vceon Max Vge Ic

3.7V @ 15V, 100A

Collector Currentmax Ic

130 A

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Parça Durumu

Obsolete

Package Description

FLANGE MOUNT, R-XUFM-X10

Polaritychannel Type

N-CHANNEL

Montaj Tipi

Chassis Mount

RoHS Durumu

RoHS Compliant

Pin Sayısı

25

Current Collector Cutoff Max

250μA

Case Connection

ISOLATED

Turnoff Timenom Toff

390 ns

Max Power Dissipation

780W

Collectoremitter Breakdown Voltage

1.2kV

Igbt Type

NPT

Üretici Parça No

APTGF100A120T3AG

Package Shape

RECTANGULAR

Number Of Terminals

10

RoHS

Compliant

Maks. Çalışma Sıcaklığı

150°C

Pin Sayısı

20

Turnon Timenom Ton

190 ns

Turn On Time

190 ns

Element Configuration

Dual

Collectoremitter Voltagemax

1200 V

Turn Off Timenom Toff

390 ns

Ihs Manufacturer

MICROSEMI CORP

Jesd30 Code

R-XUFM-X10

Terminal Sayısı

10

Input Capacitance

6.5nF
