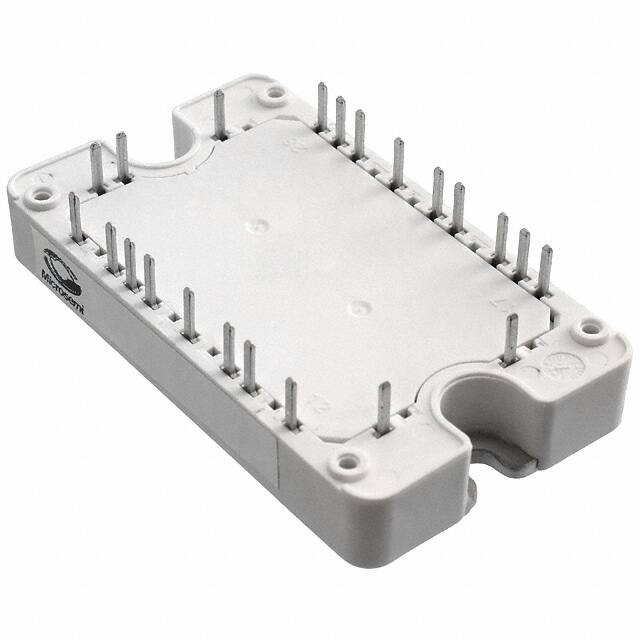

APTCV60HM45BC20T3G

Teknik Özellikler

Temel Ürün No

APTCV60

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

36 Weeks

Çalışma Sıcaklığı

-40°C~150°C TJ

Voltage Collector Emitter Breakdown Max

600 V

Montaj Tipi

Chassis Mount

Pin Sayısı

3

Fabrika Paket Adedi

1

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Paket

Bulk

Power Max

250W

RoHS

Details

Kılıf / Paket

SP3

Currentcollector Ic Max

50 A

Yayın Yılı

2012

Input Capacitance Cies Vce

3.15nF @ 25V

Ürün Durumu

Active

Vceon Max Vge Ic

1.9V @ 15V, 50A

Collector Emitter Voltage Vceo

1.9V

Tedarikçi Cihaz Paketi

SP3

Input

Standard

Max Power Dissipation

250W

Ambalaj

Tube

Max Collector Current

50A

Ürün Tipi

Discrete Semiconductor Modules

Configuration

Boost Chopper, Full Bridge

Collectoremitter Breakdown Voltage

600V

Ntc Thermistor

Yes

Igbt Type

Trench Field Stop

Input Capacitance

3.15nF

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Chassis Mount

Lifecycle Status

IN PRODUCTION (Last Updated: 3 weeks ago)

Number Of Elements

1

Technology

Si

Current Collector Cutoff Max

250μA
