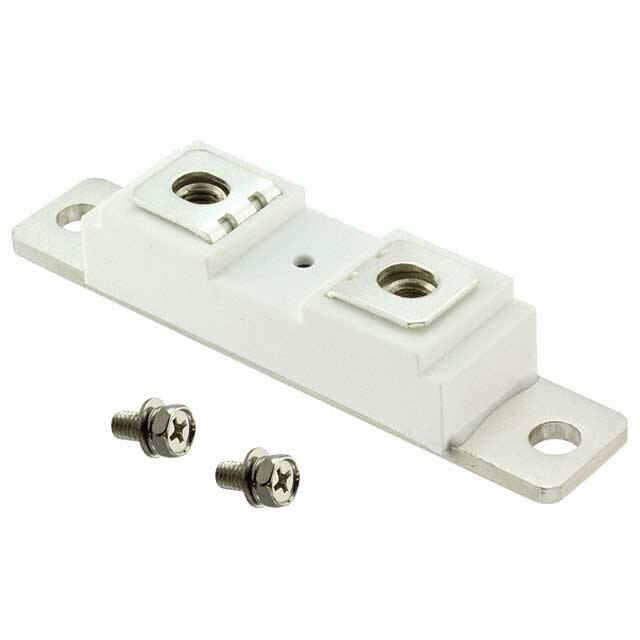

MF200K04F4-BP

Teknik Özellikler

Applications

ULTRA FAST SOFT RECOVERY

Kılıf / Paket

F4 Module

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

12 Weeks

Reverse Currentmax

500μA

Power Dissipation Max

833W

Output Currentmax

100A

Tepe Reflow Süresi (maks. sn)

10

Ambalaj

Bulk

Number Of Phases

1

Diode Type

Standard

RoHS Durumu

ROHS3 Compliant

ECCN Kodu

EAR99

Reverse Recovery Time

95ns

Nonrep Pk Forward Currentmax

1800A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Yayın Yılı

2008

Yüzey Montaj

NO

Rep Pk Reverse Voltagemax

400V

Montaj Tipi

Chassis Mount

Current Reverse Leakage Vr

500μA @ 400V

Current Average Rectified Io

100A

Number Of Elements

2

Tepe Reflow Sıcaklığı (°C)

260

Diode Element Material

SILICON

Parça Durumu

Active

Diode Configuration

1 Pair Common Anode

Terminal Formu

UNSPECIFIED

Operating Temperature Max

150°C

Jesd30 Code

R-XUFM-X2

Voltage Forward Vf Max If

1.35V @ 100A

Case Connection

CATHODE

Terminal Sayısı

2

Operating Temperature Junction

-40°C~150°C

HTS Kodu

8541.10.00.80

Voltage Dc Reverse Vr Max

400V

Terminal Pozisyonu

UPPER
