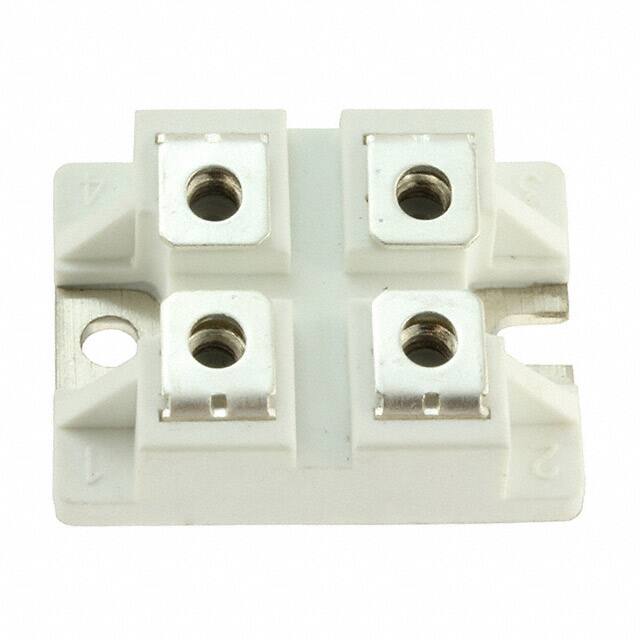

MF200DU06FJ-BP

Teknik Özellikler

HTS Kodu

8541.10.00.80

Voltage Dc Reverse Vr Max

600V

Terminal Pozisyonu

UPPER

Terminal Formu

UNSPECIFIED

Operating Temperature Max

150°C

Jesd30 Code

R-XUFM-X4

Voltage Forward Vf Max If

1.4V @ 100A

Case Connection

ISOLATED

Operating Temperature Junction

-40°C~150°C

Terminal Sayısı

4

Tepe Reflow Sıcaklığı (°C)

260

Diode Element Material

SILICON

Parça Durumu

Active

Diode Configuration

2 Independent

Rep Pk Reverse Voltagemax

600V

Montaj Tipi

Chassis Mount

Current Reverse Leakage Vr

500μA @ 600V

Current Average Rectified Io

100A

Number Of Elements

2

RoHS Durumu

ROHS3 Compliant

ECCN Kodu

EAR99

Reverse Recovery Time

105ns

Nonrep Pk Forward Currentmax

1500A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Yayın Yılı

2008

Yüzey Montaj

NO

Diode Type

Standard

Power Dissipation Max

260W

Output Currentmax

100A

Number Of Phases

1

Ambalaj

Bulk

Tepe Reflow Süresi (maks. sn)

10

Applications

ULTRA FAST RECOVERY

Kılıf / Paket

SOT-227-4

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

12 Weeks

Reverse Currentmax

500μA
