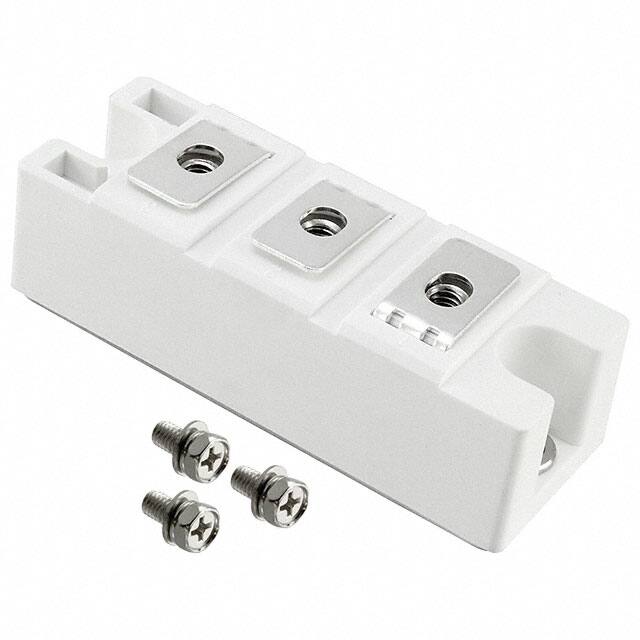

MD240C16D2-BP

Teknik Özellikler

Current Average Rectified Io

240A

Current Reverse Leakage Vr

9mA @ 1600V

Voltage Forward Vf Max If

1.25V @ 300A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Phases

1

Terminal Pozisyonu

UPPER

Diode Configuration

1 Pair Series Connection

Fabrika Tedarik Süresi

12 Weeks

Speed

Standard Recovery >500ns, > 200mA (Io)

Montaj Tipi

Chassis Mount

Operating Temperature Max

150°C

Diode Element Material

SILICON

Parça Durumu

Active

Output Currentmax

240A

HTS Kodu

8541.10.00.80

Voltage Dc Reverse Vr Max

1600V

Nonrep Pk Forward Currentmax

7550A

Terminal Formu

UNSPECIFIED

Kılıf / Paket

Module

Tepe Reflow Süresi (maks. sn)

10

Tepe Reflow Sıcaklığı (°C)

260

ECCN Kodu

EAR99

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Rep Pk Reverse Voltagemax

1600V

Case Connection

ISOLATED

Terminal Sayısı

3

Yayın Yılı

2008

Diode Type

Standard

Applications

GENERAL PURPOSE

Number Of Elements

2

Operating Temperature Junction

-40°C~150°C

Yüzey Montaj

NO

Reverse Currentmax

9000μA

Jesd30 Code

R-XUFM-X3
