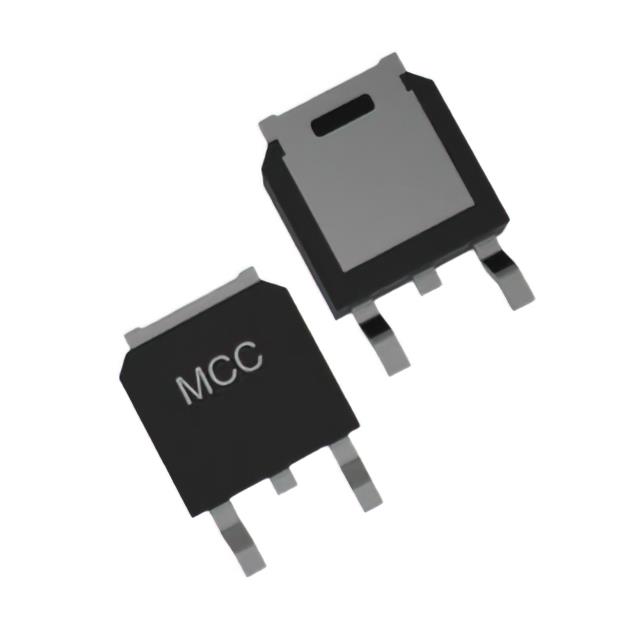

MCU75N06YHE3-TP

Teknik Özellikler

Montaj Tipi

Surface Mount

Ambalaj

Tape & Reel (TR)

Drain To Source Voltage Vdss

60 V

Vgs Max

±20V

Input Capacitance Ciss Max Vds

1698 pF @ 30 V

Kılıf / Paket

TO-252-3, DPAK (2 Leads + Tab), SC-63

Çalışma Sıcaklığı

-55°C ~ 175°C (TJ)

Drive Voltage Max Rds On Min Rds On

4.5V, 10V

Tedarikçi Cihaz Paketi

TO-252 (DPAK)

Gate Charge Qg Max Vgs

34.5 nC @ 10 V

Parça Durumu

Active

Fet Type

N-Channel

Rds On Max Id Vgs

4.8mOhm @ 20A, 10V

Vgsth Max Id

2.5V @ 250µA

Power Dissipation Max

100W (Tj)

Current Continuous Drain Id25

75A (Tc)

Qualification

AEC-Q101

Grade

Automotive
