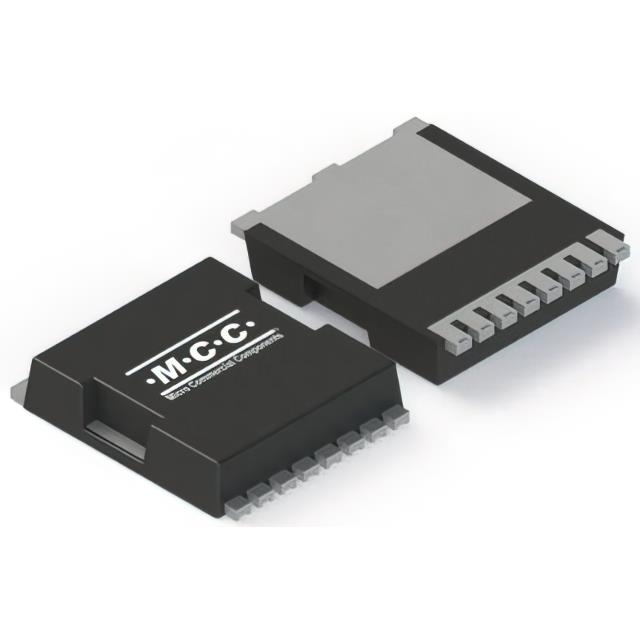

MCTL300N10YHE3-TP

Teknik Özellikler

Qualification

AEC-Q101

Input Capacitance Ciss Max Vds

10051 pF @ 50 V

Current Continuous Drain Id25

300A (Tc)

Grade

Automotive

Çalışma Sıcaklığı

-55°C ~ 175°C (TJ)

Vgsth Max Id

3.9V @ 250µA

Gate Charge Qg Max Vgs

166 nC @ 10 V

Vgs Max

±20V

Ambalaj

Tape & Reel (TR)

Drive Voltage Max Rds On Min Rds On

10V

Fet Type

N-Channel

Power Dissipation Max

375W (Tj)

Drain To Source Voltage Vdss

100 V

Tedarikçi Cihaz Paketi

TOLL-8L

Parça Durumu

Active

Rds On Max Id Vgs

1.55mOhm @ 30A, 10V

Montaj Tipi

Surface Mount

Kılıf / Paket

8-PowerSFN
