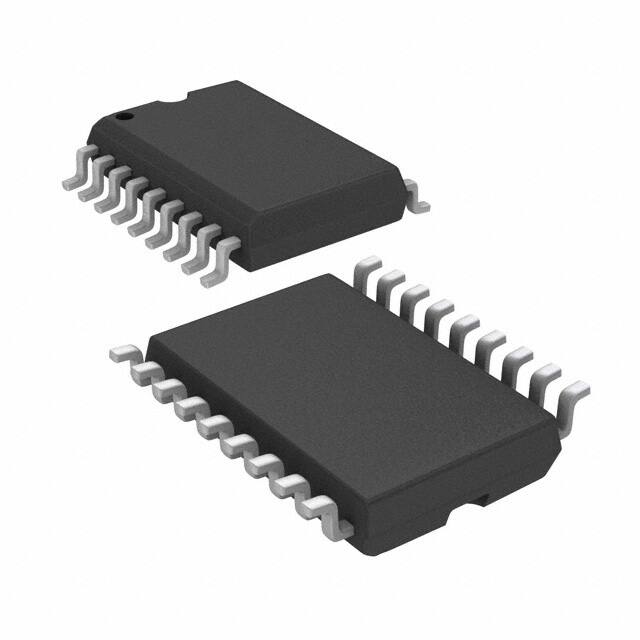

SG3526DW

Teknik Özellikler

Terminal Formu

GULL WING

Kurşunsuz

Lead Free

Topology

Buck, Flyback

Max Duty Cycle

49 %

RoHS Durumu

RoHS Compliant

Tepe Reflow Sıcaklığı (°C)

260

Kurşunsuz Kodu

yes

Terminal Sayısı

18

Fall Time Typ

100 ns

Synchronous Rectifier

Yes

Pin Sayısı

18

Terminal Pozisyonu

DUAL

Function

Step-Down, Step-Up/Step-Down

Quiescent Current

18mA

Frequency Switching

1Hz~350kHz

Frekans

500kHz

Analog Ic Other Type

SWITCHING CONTROLLER

Çıkış Tipi

Transistor Driver

Clock Sync

No

Control Technique

PULSE WIDTH MODULATION

Output Phases

1

Switcher Configuration

PUSH-PULL

Rise Time

300ns

Temel Parça No

SG*526

Output Current

100mA

Number Of Outputs

2

Tepe Reflow Süresi (maks. sn)

40

Control Mode

VOLTAGE-MODE

JESD-609 Kodu

e3

Çalışma Sıcaklığı

0°C~70°C TA

ECCN Kodu

EAR99

Voltage Supply Vccvdd

8V~35V

Lifecycle Status

IN PRODUCTION (Last Updated: 2 weeks ago)

Montaj

Surface Mount

Input Voltagenom

15V

Montaj Tipi

Surface Mount

Input Voltage Min

8V

Control Features

Dead Time Control, Enable, Frequency Control, Reset, Soft Start

Operating Supply Current

18mA

Genişlik

7.5mm
