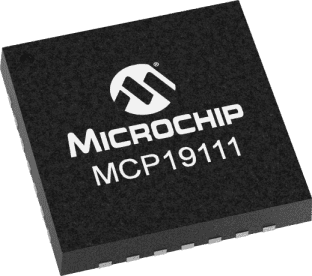

MCP19111T-E/MQVAO

Teknik Özellikler

Parça Durumu

Active

Çalışma Sıcaklığı

-40°C~125°C TJ

Usage Level

Automotive grade

Analog Ic Other Type

SWITCHING CONTROLLER

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Input Voltage Max

32V

Seri

Automotive, AEC-Q100

Terminal Sayısı

28

Yüzey Montaj

YES

Topology

Buck

Ambalaj

Tape & Reel (TR)

Synchronous Rectifier

Yes

Çıkış Tipi

Transistor Driver

Function

Step-Down

Terminal Pozisyonu

QUAD

Output Configuration

Positive

Serial Interfaces

I2C, PMBus, SMBus

Frequency Switching

100kHz~1.6MHz

Additional Feature

ADJ O/P VOLTAGE FROM 0.5V TO 3.6V

Control Mode

CURRENT-MODE

Uzunluk

5mm

Clock Sync

No

Genişlik

5mm

Kılıf / Paket

28-VFQFN Exposed Pad

Montaj Tipi

Surface Mount

Temel Parça No

MCP19111

Terminal Adımı

0.5mm

Voltage Supply Vccvdd

4.5V~32V

Control Features

Phase Control

Input Voltagenom

12V

Input Voltage Min

4.5V

Control Technique

PULSE WIDTH MODULATION

Jesd30 Code

S-PQCC-N28

Number Of Outputs

1
