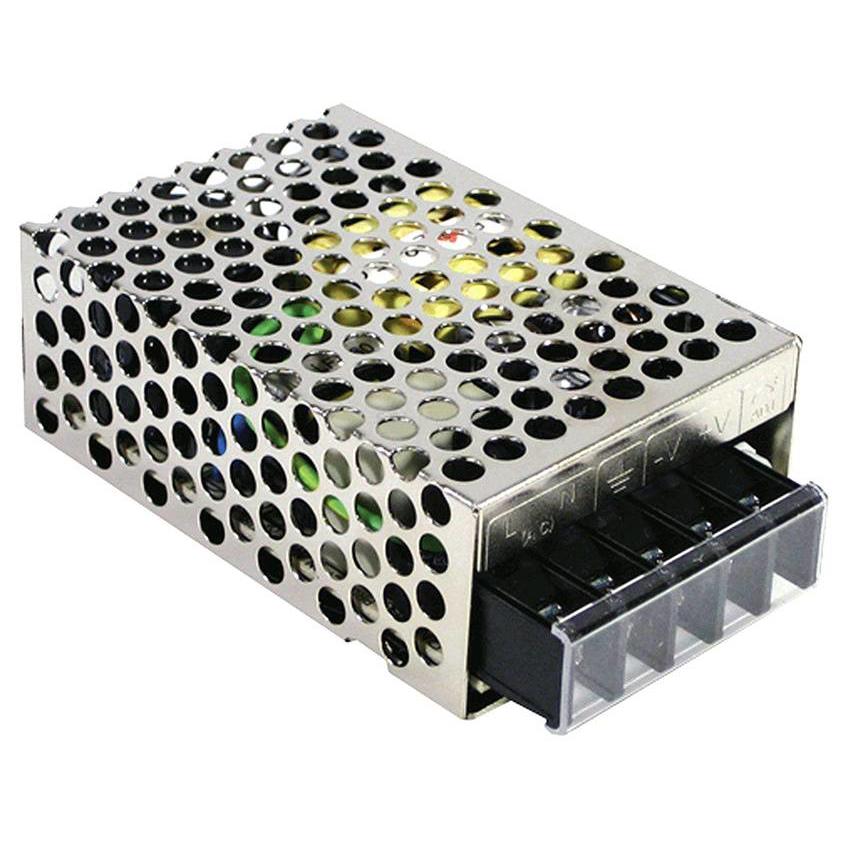

SD-15A-05

Teknik Özellikler

Isolation Voltage

1.5kV

Max Output Current

3A

Output Voltage Max

5V DC

Uzunluk

79.00mm

Weight

180.00g

Maks. Çalışma Sıcaklığı

+ 60 C

Output Power

15 W

Output Current Max Rounded

3A

Output Current Details

3 A

Depth

78mm

No Of Outputs

1x

No Of Inputs

1x

Input Voltage

9.2 V to 18 V

Input Voltagemax

18 V

Minimum Operating Temperature

- 10 C

Input Voltage Max

18V DC

Input Voltagemin

9.2 V

Connections

Screw terminals

Output Current Min

0A

Genişlik

51.00mm

Dim

(L x W x H) 79.00 x 51.00 x 28.00 mm

Number Of Outputs

1 Output

Montaj Stili

Chassis

Seri

SD-15

Tip

Synchronised

RoHS

Details

Yükseklik

28.00mm

Birim Ağırlık

6.349313 oz

Output Voltage Min

5V DC

Min Input Voltage

9.2V DC

Output Voltagechannel1

5 V

Güç

15W

Content

1pc(s)

Fabrika Paket Adedi

60
