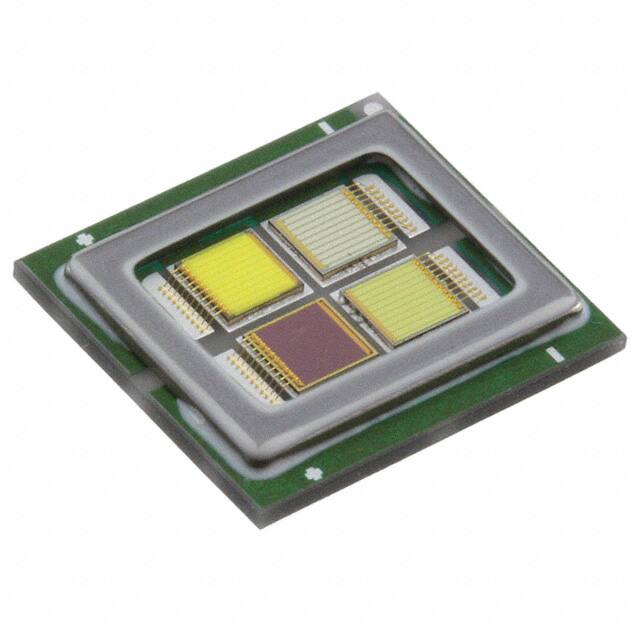

SBM-160-RGBW-H41-RF100

Teknik Özellikler

Luminous Flux

730 lm

Viewing Angle

24 °

Boyut / Ölçü

0.433Lx0.394W 11.00mmx10.00mm

Pin Sayısı

8

Yükseklik

1.64mm

Maks. Oturma Yüksekliği

0.072 1.82mm

Uzunluk

11mm

Tedarikçi Cihaz Paketi

SMD

Lumenswatt Current Test

31 lm/W Red 40 lm/W Green 7 lm/W Blue 39 lm/W White

Number Of Leds

4

Lens Style

Rectangular

Illumination Color

Blue, Green, Red, White

Forward Voltage

3.8V

Flux Currenttemperature Test

320lm Red 740lm Green 110lm Blue 590lm White

Forward Current

4A

Yayın Yılı

2012

Nem Hassasiyeti (MSL)

1 (Unlimited)

Renk

Red, Green, Blue, White - Cool (RGBW)

RoHS Durumu

RoHS Compliant

Max Current Rating

4A

Seri

SBM-160

Thermal Resistance Of Package

1.46°C/W

Parça Durumu

Obsolete

Current Test

4A Red 4A Green 4A Blue 4A White

Montaj

Screw, Surface Mount

Montaj Tipi

Surface Mount

Ambalaj

Tray

Voltage Forward Vf Typ

2.6V Red 4.6V Green 3.8V Blue 3.8V White

Kılıf / Paket

8-SMD Module

Dominant Wavelength

624 nm

Temperaturetest

25°C

Genişlik

10mm
