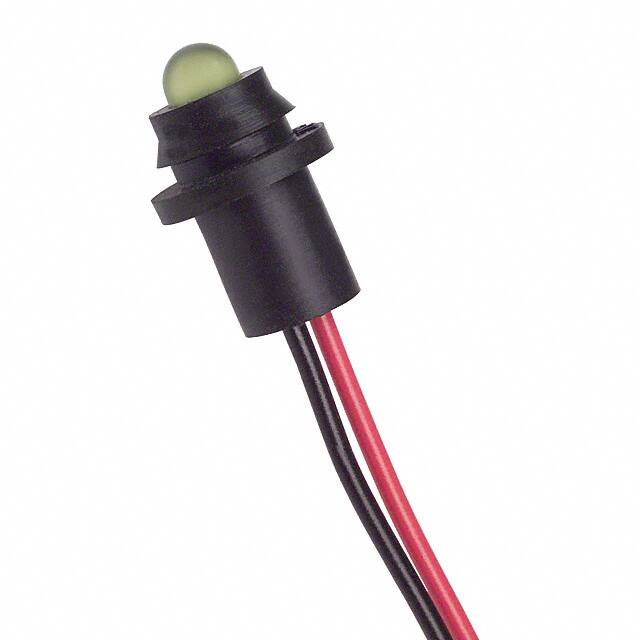

SSI-LXH9YD-150

Teknik Özellikler

Terminal Stili

Wire Leads - 6 (152.40mm)

Lamp Color

Yellow

Kurşunsuz

Lead Free

Gerilim

2.1V

Packing Method

BULK

Operating Temperature Min

-40°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Viewing Angle

60°

Luminous Intensity

30 mcd

Çap

5mm

HTS Kodu

8541.40.20.00

Ratings

Vf (Typ), If (Max)

Fabrika Tedarik Süresi

16 Weeks

Fonksiyon Sayısı

1

Tip

LED

Wavelength Peak

585nm

Lens Style

Round with Domed Top

Configuration

SINGLE WITH BUILT-IN RESISTOR

Forward Current

30mA

Lens Size

5mm T-1 3/4

Panel Cutout Shape

Round

Overall Height

18mm

Parça Durumu

Active

Voltage Rated Dc

2.5V

Montaj

Snap in, Through Hole

Operating Temperature Max

85°C

Panel Cutout Dimensions

0.33 (8.38mm)

Terminal Sayısı

2

Operating Supply Voltage

2.1V

Forward Voltage

2.1V

Terminal

Wire Leads

Yayın Yılı

2002

RoHS Durumu

ROHS3 Compliant

Lens Transparency

Diffused

Kurşunsuz Kodu

yes
