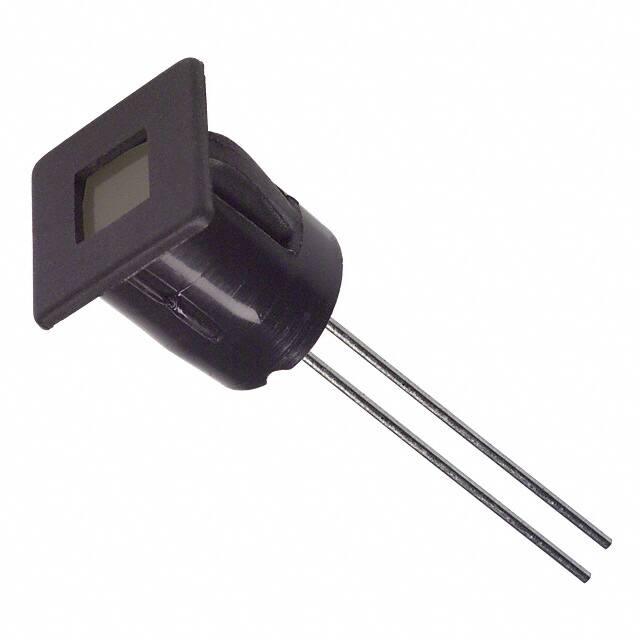

SSI-LXH55YD

Teknik Özellikler

Gerilim

2.1V

Kurşunsuz

Lead Free

Lamp Color

Yellow

Number Of Contacts

2

Viewing Angle

80°

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-40°C

Packing Method

BULK

Fabrika Tedarik Süresi

12 Weeks

Ratings

Vf (Typ), If (Max)

Luminous Intensity

10 mcd

Çap

5mm

Lens Size

4.40mm

Forward Current

30mA

Configuration

SINGLE

Tip

LED

Wavelength Peak

585nm

Lens Style

Square with Flat Top

Fonksiyon Sayısı

1

Voltage Rated Dc

2.5V

Parça Durumu

Active

Panel Cutout Shape

Square

Panel Cutout Dimensions

0.35 x 0.35 (8.89mm x 8.89mm)

Terminal Sayısı

2

Operating Temperature Max

85°C

Forward Voltage

2.1V

Yüzey Montaj

NO

Mounting Feature

RADIAL MOUNT

Yükseklik

11mm

Kurşunsuz Kodu

yes

Lens Transparency

Diffused

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2001
