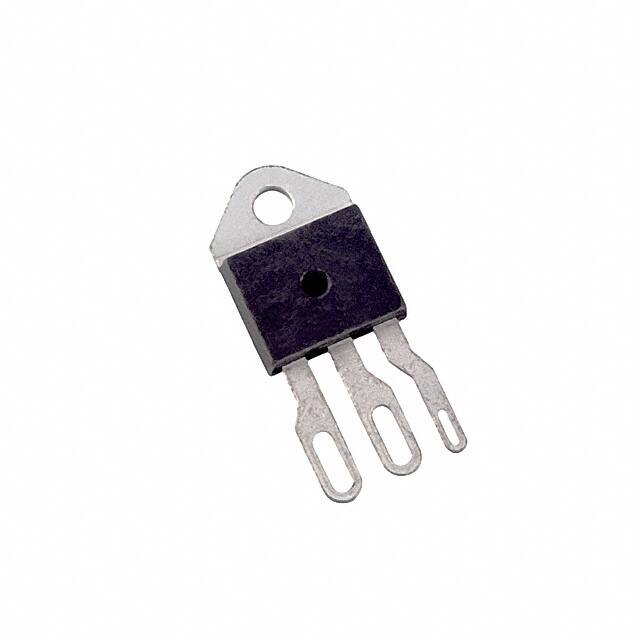

S8065JTP

Teknik Özellikler

Tepe Reflow Süresi (maks. sn)

40

Montaj

Through Hole

Critical Rate Of Rise Of Offstate Voltagemin

475V/us

Scr Type

Standard Recovery

Leakage Current Max

5mA

HTS Kodu

8541.30.00.80

Current Non Rep Surge5060hz Itsm

800A 950A

Configuration

SINGLE

Trigger Device Type

SCR

Current Off State Max

20μA

Ambalaj

Tube

Repetitive Peak Offstate Voltage

800V

Rms Current Irms

65A

Repetitive Peak Reverse Voltage

800V

RoHS Durumu

ROHS3 Compliant

Additional Feature

UL RECOGNIZED

Terminal Kaplaması

Matte Tin (Sn)

Voltageoff State

800V

Terminal Formu

SOLDER LUG

Çalışma Sıcaklığı

-40°C~125°C

Tepe Reflow Sıcaklığı (°C)

260

Voltage On State Vtm Max

1.8V

Current Gate Trigger Igt Max

50mA

Qualification Status

Not Qualified

Akım Değeri

41A

Yayın Yılı

2005

Nonrepetitive Pk Onstate Cur

950 A

Hold Current

80mA

Jesd30 Code

R-PSFM-D3

Current On State It Rms Max

65A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kılıf / Paket

TO-218X-3 Isolated Tab

JESD-609 Kodu

e3

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

18 Weeks

Genişlik

4.78mm

Yükseklik

12.62mm

Montaj Tipi

Through Hole

Parça Durumu

Active

Forward Voltage

1.8V
