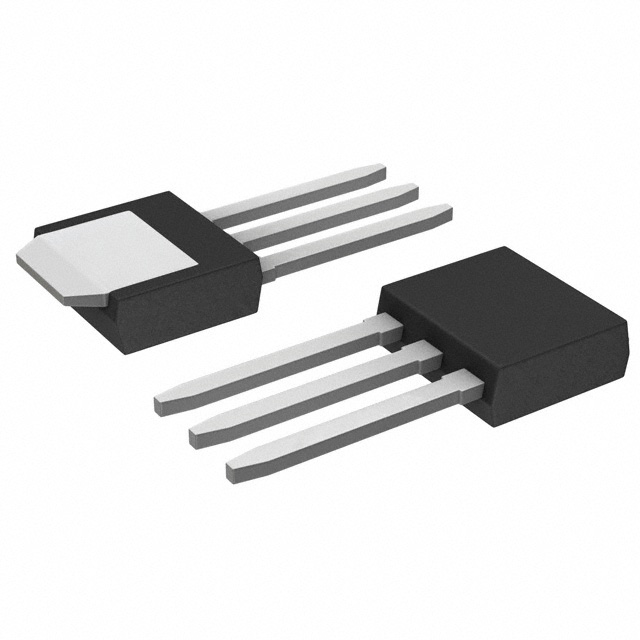

MAC4DHM-1G

Teknik Özellikler

Package Shape

RECTANGULAR

Kılıf / Paket

TO-251-3 Short Leads, IPak, TO-251AA

RoHS Durumu

ROHS3 Compliant

Ihs Manufacturer

LITTELFUSE INC

Number Of Elements

1

Current Hold Ih Max

15mA

Rohs Code

Yes

Çalışma Sıcaklığı

-40°C~110°C TJ

Parça Durumu

Active

Yayın Yılı

2009

Current Gate Trigger Igt Max

5mA

Ambalaj

Tube

Voltage Gate Trigger Vgt Max

1.3V

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Terminal Formu

THROUGH-HOLE

Number Of Terminals

3

Üretici Parça No

MAC4DHM-1G

Trigger Device Type

4 QUADRANT LOGIC LEVEL TRIAC

Jesd30 Code

R-PSIP-T3

ECCN Kodu

EAR99

Package Body Material

PLASTIC/EPOXY

Temel Parça No

MAC4

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Current On State It Rms Max

4A

Tedarikçi Cihaz Paketi

TO-252, (D-Pak)

Montaj Tipi

Through Hole

Configuration

Single

Terminal Sayısı

3

Package Description

IN-LINE, R-PSIP-T3

Voltageoff State

600V

Case Connection

MAIN TERMINAL 2

Package Style

IN-LINE

Paket

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ürün Durumu

Active

Repetitive Peak Offstate Voltage

600V

Qualification Status

Not Qualified

Current Non Rep Surge5060hz Itsm

40A @ 60Hz

Risk Rank

0.75

Rms Onstate Currentmax

4 A
