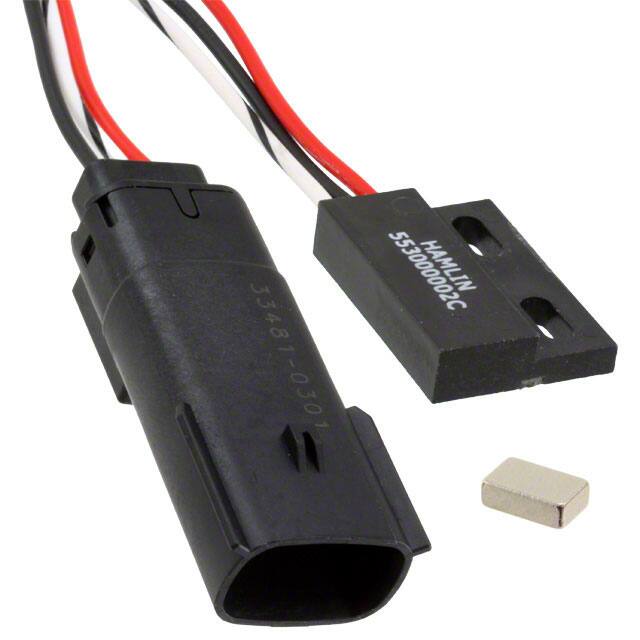

55300-00-02-C

Teknik Özellikler

Terminal Stili

Wire Leads

Output

Analog Voltage

Parça Durumu

Active

Kılıf / Paket

Rectangular, Wire Leads

Body Height

6.35mm

Terminal

Wire Leads

Montaj Tipi

Chassis Mount

For Measuring

Rotary Position

RoHS Durumu

ROHS3 Compliant

Output Signal

Clockwise Increase

Kurşunsuz

Lead Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuator Type

External Magnet, Included

REACH Uyumluluk Kodu

unknown

Çalışma Sıcaklığı

-40°C~105°C

Sensing Method

Hall Effect

Besleme Gerilimi

4.5V~5.5V

Max Output Current

8mA

Akım Değeri

16mA

Montaj

Chassis Mount

Response Time

4000 μs

Body Breadth

20.4 mm

Rotation Angle Electrical Mechanical

0° ~ 360°

Additional Feature

EMC PROTECTION

Fabrika Tedarik Süresi

21 Weeks

Yayın Yılı

2012

Operating Supply Voltage

5.5V

Tip

Hall Effect Sensor

Body Length Or Diameter

28.5mm

Ambalaj

Box
