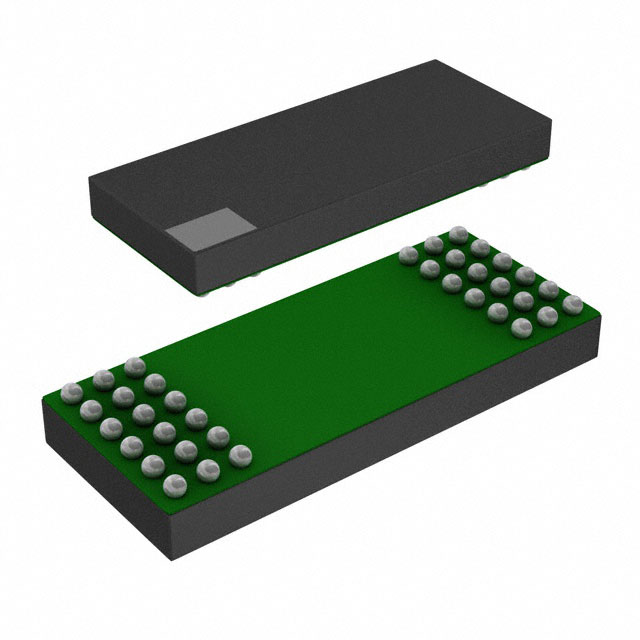

LTM2810IY-S#PBF

Teknik Özellikler

Besleme Gerilimi

1.62V~5.5V

Package Shape

RECTANGULAR

Üretici Parça No

AAR20P

Terminal Formu

BALL

Package Style

GRID ARRAY

Inputs Side1side2

3/3

Minimum Operating Temperature

- 40 C

Operating Temperaturemin

-40 °C

Technology

Magnetic Coupling

Yüzey Montaj

YES

Risk Rank

2.17

Jesd30 Code

R-PBGA-B36

Package Body Material

PLASTIC/EPOXY

Rise Fall Time Typ

350ns 250ns Max

Ürün Tipi

Digital Isolators

Ihs Manufacturer

ANALOG DEVICES INC

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Ürün Durumu

Active

Maks. Çalışma Sıcaklığı

+ 85 C

Interface Ic Type

INTERFACE CIRCUIT

Ambalaj

Tray

Nem Hassasiyeti (MSL)

3 (168 Hours)

Maximum Fall Time

250 ns

Montaj Tipi

Surface Mount

Package Description

BGA,

Isolated Power

Yes

Çalışma Sıcaklığı

-40°C~85°C

Seated Heightmax

2.31 mm

Brand Name

Analog Devices Inc

Parça Durumu

Active

Isolation Type

Galvanic Isolation

Terminal Adımı

1 mm

Temperature Grade

INDUSTRIAL

Voltage Isolation

7500Vrms

Number Of Terminals

36

Part Life Cycle Code

Active

Temel Ürün No

LTM2810

Propagation Delay Tplh Tphl Max

100ns, 100ns

Maximum Rise Time

350 ns

Kılıf / Paket

36-BGA Module
