55502431

Teknik Özellikler

Material

Polyamide

Approved In Combination With Protective Conduit According To Din En6138623

Yes

Compatible With

SILVYN® EL,SILVYN® ELÖ,SILVYN® ELT

Material Screw Gland

Polyamide (PA)

Onepiece

No

Factory Colour

Black

Construction Type

External thread

Content

10pc(s)

External Thread

M20

Rohscompliant

Yes

Manufacturer Part

55502431

Conduit Features

halogen-free,UV-resistant

Approved In Combination With Protective Conduit Ur

No

Thread Connection Size

M20 x 1.5

With Integrated Holder

No

Max Temperature

+120°C

Material Details

PA 6

Revolving Thread

No

Min Temperature

-40°C

Tip

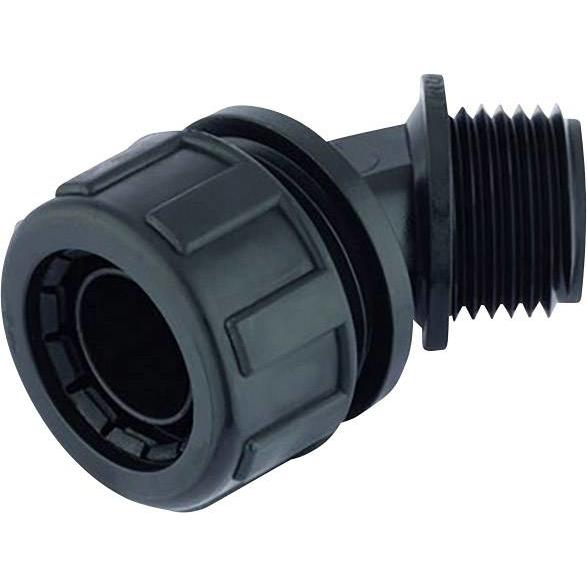

Cable gland for protection tubes SI, SP. EL, ELÖ and ELT

Angled

45-degree

Degree Of Protection Ip

IP65

Temperature Range

-50 - +135°C

Model

45°-elbow
