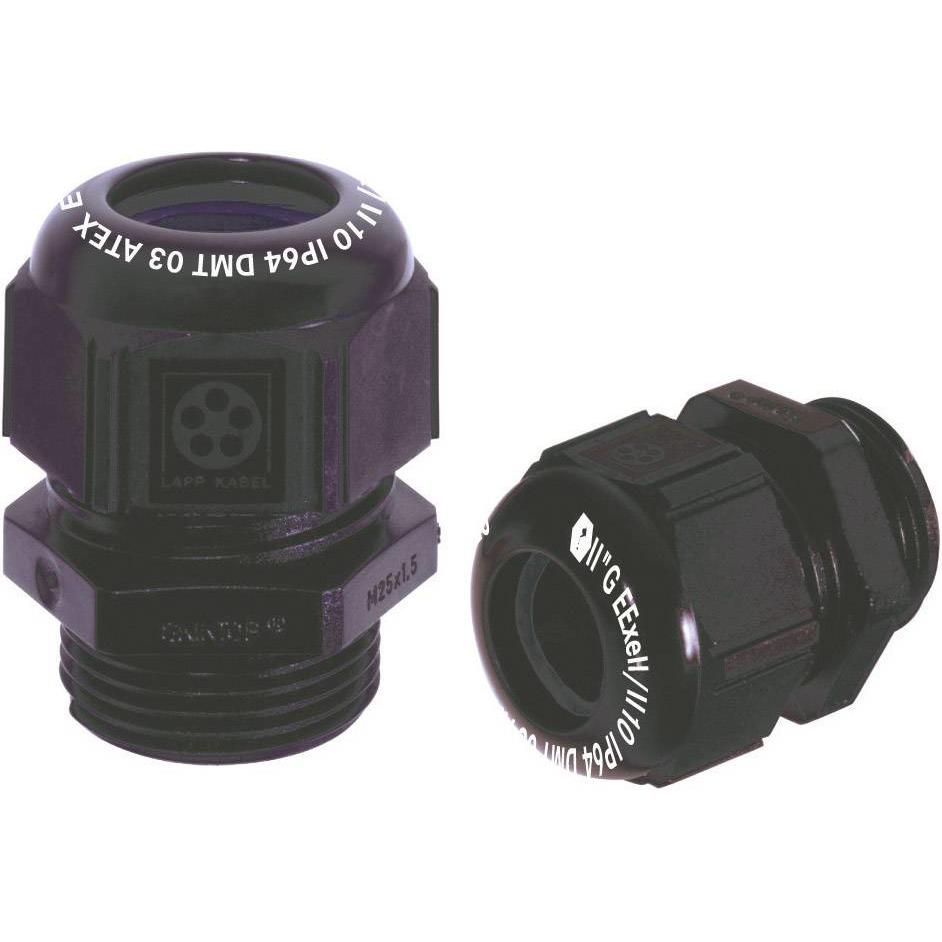

54115200

Teknik Özellikler

Montaj

Cable

Model

Straight

With Locknut

No

Ratings

IP68

RoHS

Compliant

Material Details

Body: Polyamide, seal: CR/NBR

Material

Polyamide

Thread Type

Metric

Thread Length

8mm

Clamp

3mm

Tip

K-M EEXE II ATEX

Min Temperature

-20°C

Ip Rating

IP68 (up to 10 bar)

Suitable For Cable Diameter

3 - 5.5

Maks. Çalışma Sıcaklığı

80 °C

Manufacturer Part

54115200

Content

1pc(s)

Min. Çalışma Sıcaklığı

-20 °C

Nominal Thread Size Metricpg

12

Material Quality

Polyamide (PA)

Max Temperature

+80°C

Explosiontested Version

Yes

Certification Marks

DMT 03 ATEX E 044X · DIN-EN 50014 · DIN-EN 50019

Halogen Free

Not Halogen Free

Thread Size

12 x 1.5

Spanner Size

15mm

Terminal Max

5.5mm

Glassfibre Reinforced

No

Bend Radius Protectiontrumpet Flare

No

Wrench Width

15

Factory Colour

Black (RAL 9005)

Halogenfree

No

External Thread

M12

Shock Resistant

No

Temperature Range

-20 - +80 ºC°C

Degree Of Protection Ip

IP68

Renk

Black

Rohscompliant

Yes

Surface Protection

Untreated
