53112570

Teknik Özellikler

Thread Length

6.5mm

External Thread

M12

Halogenfree

Yes

Halogen Free

Yes

Manufacturer Part

53112570

Minimum Operating Temperature

(Dynamic) -25 °C, (Static) -40°C

Factory Colour

Brass

Maks. Çalışma Sıcaklığı

(Dynamic) +100 °C, (Static) +100°C

Seri

SKINTOP

Spanner Size

16mm

Tip

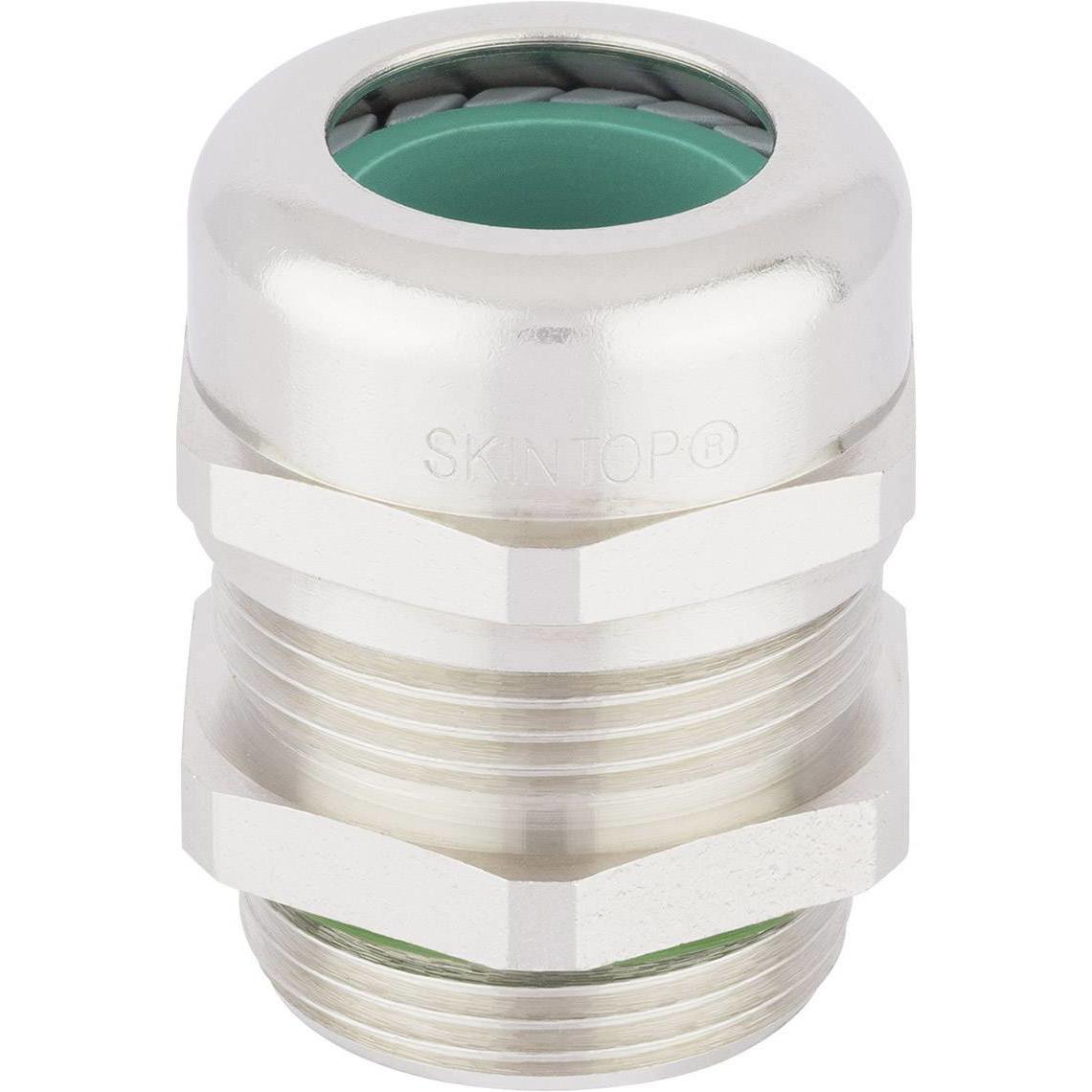

SKINTOP® MS-HF-M 12x1,5

Terminal Max

7mm

Max Temperature

+100°C

Content

1pc(s)

Özellikler

with strain relief

Min Temperature

-25°C

Clamp

3.5mm

Certification Marks

DIN EN 45545-2 · DIN EN 45545-3:2013-08 · DIN EN 1363-1: 2012-10 · DIN EN 13501-2: Classification E30

Ip Rating

IP68

Rohscompliant

Yes

Standards Met

CE Certified, DIN EN 13501-2: Classification E30, DIN EN 1363-1: 2012-10, DIN EN 45545-2, DIN EN 45545-3: 2013-08, DIN EN 60423, DIN IEC 62444, UL 94V-0

Thread Size

M12

Material

Brass
