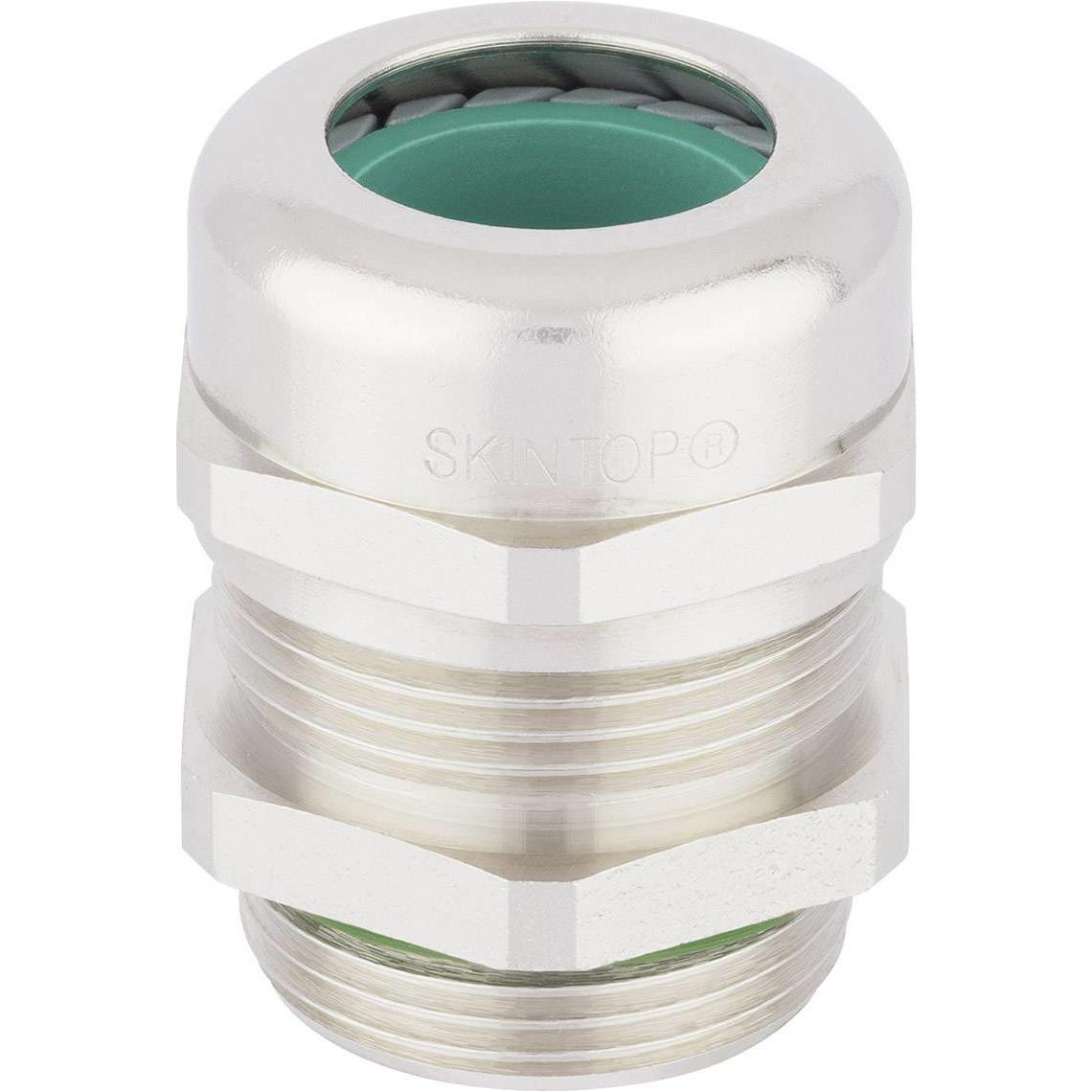

53112546

Teknik Özellikler

Minimum Operating Temperature

(Dynamic) -25 °C, (Static) -40°C

Manufacturer Part

53112546

Halogenfree

Yes

Thread Length

10mm

External Thread

M50

Seri

SKINTOP

Maks. Çalışma Sıcaklığı

(Dynamic) +100 °C, (Static) +100°C

Factory Colour

Brass

Terminal Max

35mm

Tip

SKINTOP® MS-HF-M BRUSH M50

Spanner Size

54mm

Max Temperature

+100°C

Content

1pc(s)

Clamp

27mm

Min Temperature

-25°C

Certification Marks

DIN EN 45545-2 · DIN EN 45545-3:2013-08 · DIN EN 1363-1: 2012-10 · DIN EN 13501-2: Classification E30

Ip Rating

IP68

Material

Brass

Thread Size

M50

Rohscompliant

Yes
