53111230

Teknik Özellikler

Material Quality

Polyamide (PA)

Connector Support Type

CONNECTOR ACCESSORY

Temperature Range

static: -40 - +100 °C · dynamic: -20 - +100°C

Material Details

Body: Polyamide, seal: CR/NBR

Bend Radius Protectiontrumpet Flare

No

REACH Uyumluluk Kodu

compliant

Degree Of Protection Ip

IP68

Minimum Operating Temperature

-20°C

Seri

SKINTOP

Risk Rank

2.24

Factory Colour

Black (RAL 9005)

Operating Temperature Range

-20 → +100 °C

Tip

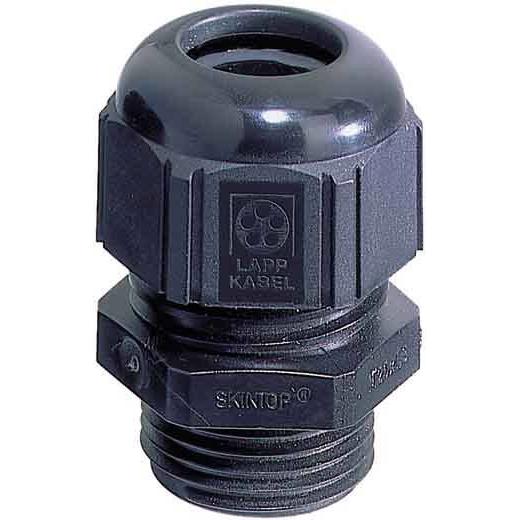

SKINTOP® ST-M25 x 1.5

Thread Type

Metric

Rohs Code

Yes

Clamp

9mm

Uzunluk

40 mm

Surface Protection

Untreated

Pitch Thread

1.5

Thread Size

M25

Model

Straight

Manufacturer Part

53111230

Halogenfree

No

Number Of Pieces

50

Maks. Çalışma Sıcaklığı

+100°C

Max Temperature

+100°C

Part Life Cycle Code

Active

Suitable For Cable Diameter

9 - 17

Explosiontested Version

No

With Locknut

No

Rohscompliant

Yes

ECCN Kodu

EAR99

External Thread

M25

Thread Length

10mm

Terminal Max

17mm

Glassfibre Reinforced

No

Ihs Manufacturer

LAPP GROUP PVT LTD

Spanner Size

30mm

Wrench Width

30

Renk

Black
