53015630

Teknik Özellikler

Tip

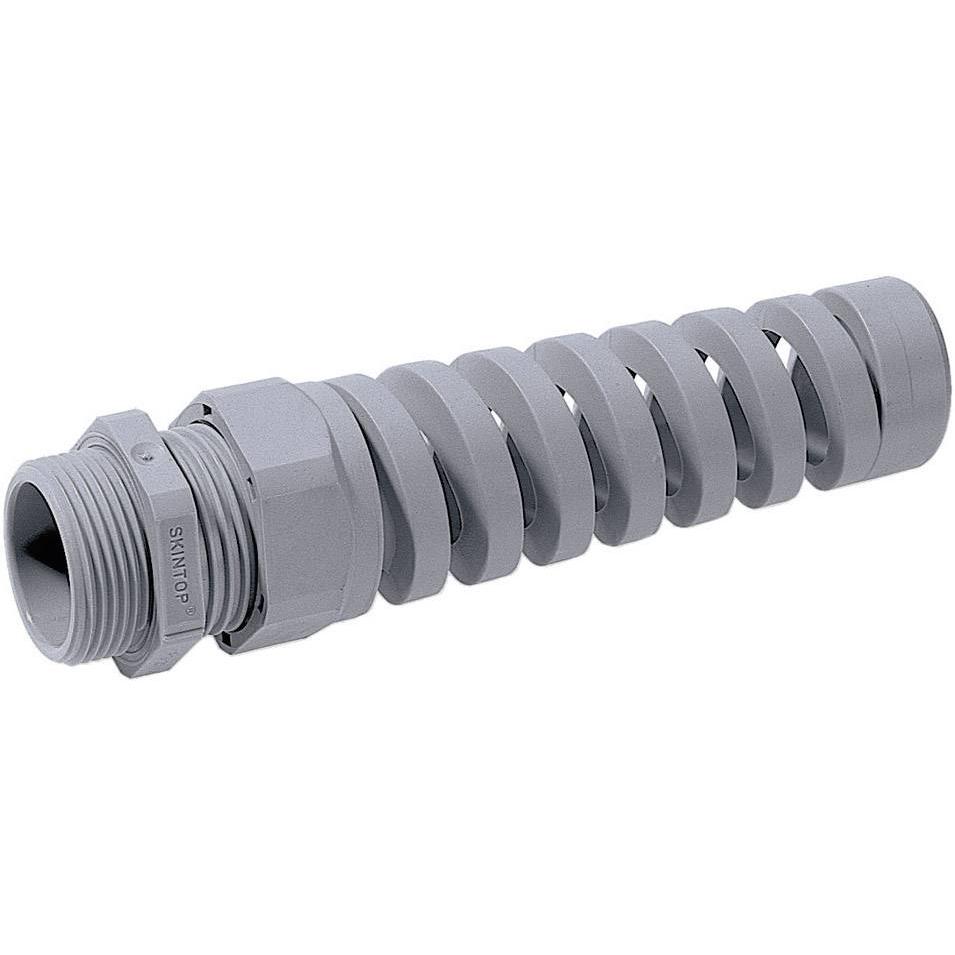

SKINTOP® BS PG13.5

Terminal Max

12mm

Ip Rating

IP68 (up to 5 bar)

Halogenfree

No

Material Quality

Polyamide (PA)

With Locknut

No

Shock Resistant

No

Rohscompliant

Yes

Clamp

6mm

Temperature Range

-20 - +80 ºC°C

Glassfibre Reinforced

No

Surface Protection

Untreated

Explosiontested Version

No

Model

Straight

Content

1pc(s)

Bend Radius Protectiontrumpet Flare

Yes

Max Temperature

+80°C

Thread Length

9mm

Spanner Size

24mm

Suitable For Cable Diameter

6 - 12

Wrench Width

24

Material

Polyamide

Thread Type

PG

Material Details

Body: Polyamide, seal: CR

Manufacturer Part

53015630

Nominal Thread Size Metricpg

13.5

External Thread

PG13.5

Factory Colour

Silver-grey (RAL 7001)

Min Temperature

-20°C

Degree Of Protection Ip

IP68
