46314-1

Teknik Özellikler

Paket

No

Max Temperature Range Fixed Installation

+180°C

Nominal Voltage U0

300V

Sold Per Metre

Yes

Halogenfree

Yes

Outside

11.20mm

Bend Radius

For flexible Application: 20 x Outer-Ø, fixed installation: 6 x Outer-Ø

Nominal Voltage Details

300/500V

Max Length Sold By The Metre

300m

Insulation Materials

Silicone

No Of Leads

3G

Core Layout

Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5

Factory Colour

Black

Rohscompliant

Yes

Min Temperature Range Fixed Installation

-50°C

Content

Sold per metre

Cable Types

HEAT 180 EWKF C

Bend Radius No Of Ods For Flexible Installation

20

Manufacturer Part

46314-1

Temperature Range

(provided proper ventilation) -50 - +180°C

Cable Features

Halogen-free,Shielded,Flame-retardant,Oil-resistant,Heat-resistant

Material Details

Sheath: EWKF Silicon-base

Cross Section Each Core

1.50mm²

Tip

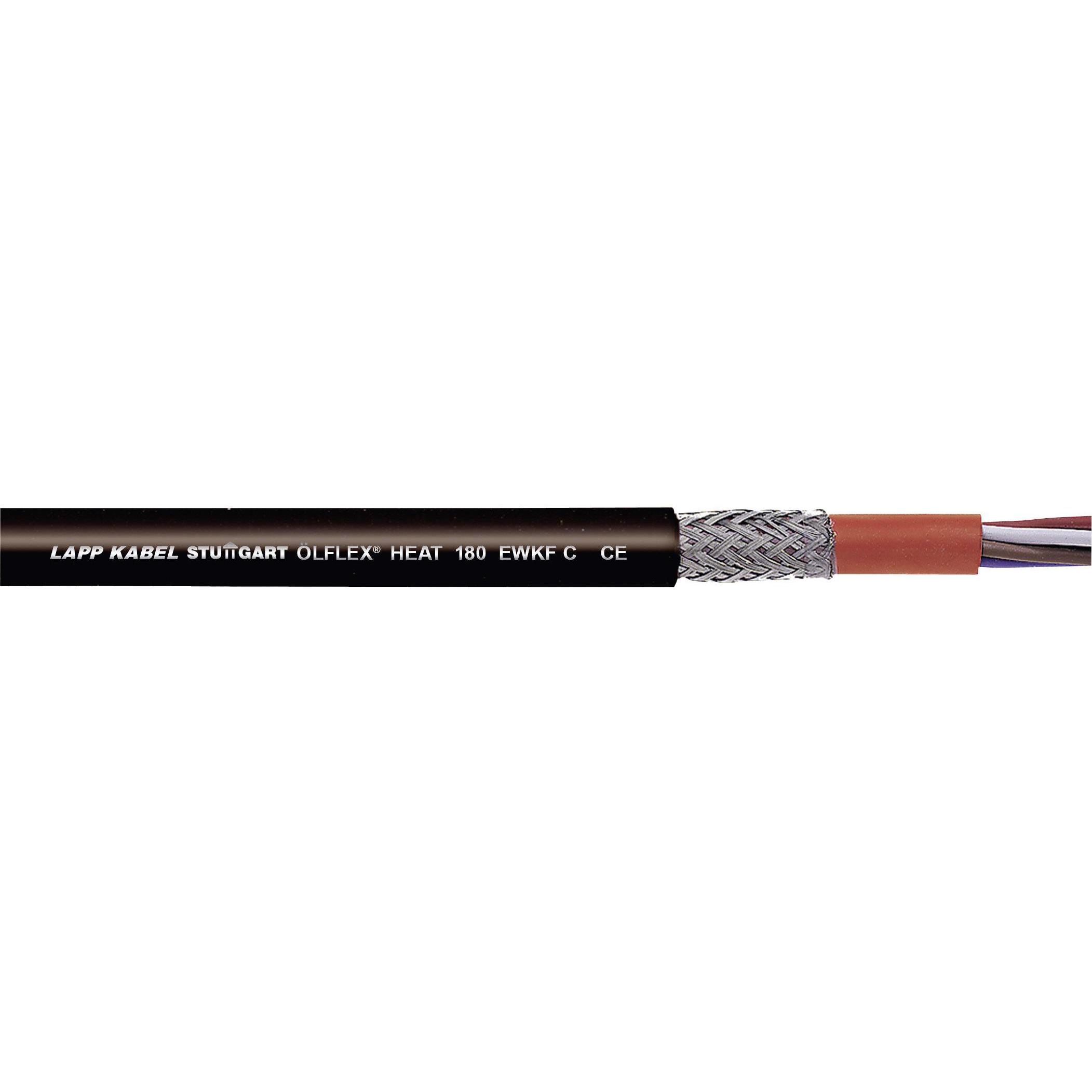

ÖLFLEX® HEAT 180 EWKF C 3G1.5

Bend Radius No Of Ods For Fixed Installation

6

Wire Id Code

Up to 5 wires: according to VDE 0293-308 (Annex T9) · From 6 wires black with white numbers

Test Voltage

2000V

Cross Section

3 x 1.5 mmmm²

Nominal Voltage

500V
