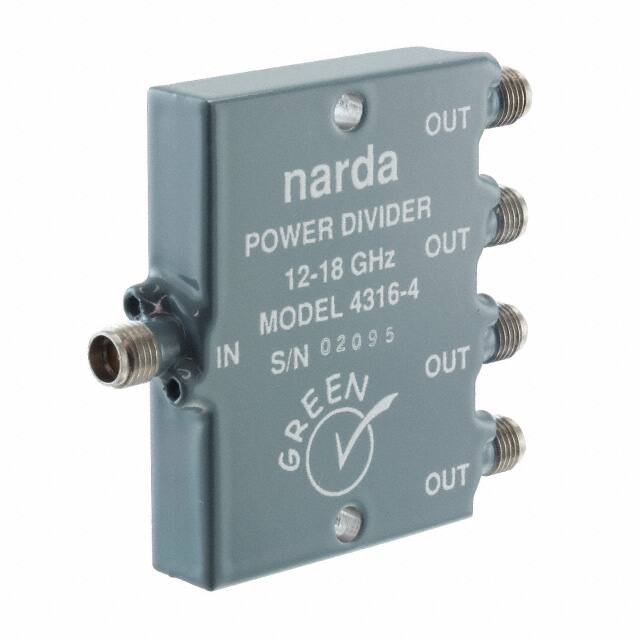

4316-4

Teknik Özellikler

Boyut / Ölçü

1.418Lx1.940W x 0.380 H 36.01mmx49.27mmx9.64mm

Operating Temperature Max

85°C

Kılıf / Paket

Module

Specifications

Isolation (Min) 18dB

Fabrika Tedarik Süresi

15 Weeks

Input Powermax Cw

44.77dBm

Additional Feature

SMA-F, ISOLATION-MIN (DB):18

Rfmicrowave Device Type

SPLITTER

Frekans

12GHz~18GHz

Insertion Loss

1.5dB

Parça Durumu

Active

Operating Temperature Min

-55°C

RoHS Durumu

RoHS Compliant

Construction

COAXIAL

Nem Hassasiyeti (MSL)

Not Applicable

Vswrmax

1.4
