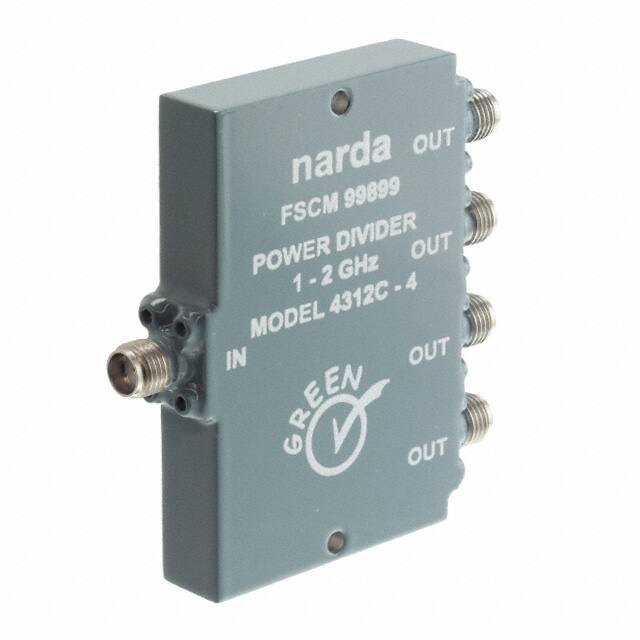

4312C-4

Teknik Özellikler

Boyut / Ölçü

1.439Lx2.260W x 0.380 H 36.55mmx57.40mmx9.64mm

Operating Temperature Max

85°C

Kılıf / Paket

Module

Specifications

Isolation (Min) 20dB

Rfmicrowave Device Type

SPLITTER

Frekans

1GHz~2GHz

Fabrika Tedarik Süresi

15 Weeks

Additional Feature

SMA-F, ISOLATION-MIN (DB):20

Input Powermax Cw

44.77dBm

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Insertion Loss

0.8dB

Operating Temperature Min

-55°C

Nem Hassasiyeti (MSL)

Not Applicable

Vswrmax

1.25

Construction

COAXIAL
