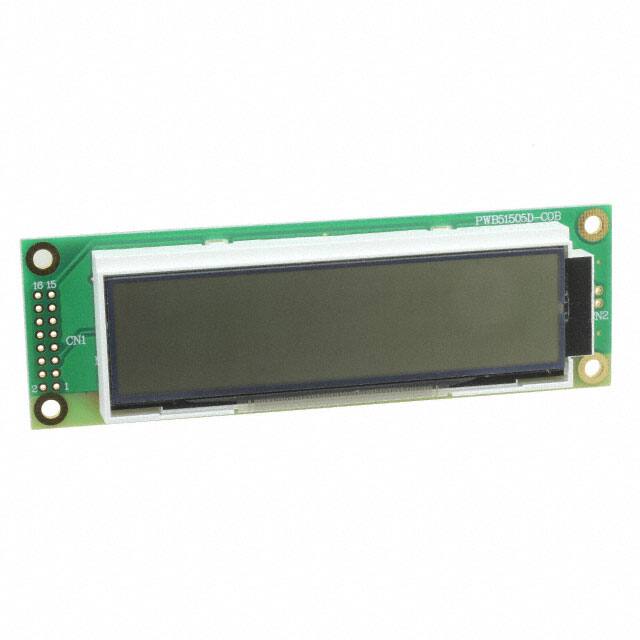

C-51505NFJ-SLW-AQN

Teknik Özellikler

Viewing Area Length

83 mm

Viewing Area

83.00mm L x 18.60mm W

REACH Uyumluluk Kodu

unknown

RoHS Durumu

RoHS Compliant

Rohs Code

Yes

Part Life Cycle Code

Obsolete

Display Mode

Transflective

Supply Voltagemin

4.9 V

Operating Temperaturemin

-20 °C

Besleme Gerilimi

4.5V~5.5V

Display Type

FSTN - Film Super-Twisted Nematic

Optoelectronic Device Type

GRAPHIC DOT MATRIX LCD DISPLAY

Ihs Manufacturer

KYOCERA CORP

Supply Voltagenom

5.3 V

Interface

Parallel, 8-Bit

Character Format

7-Segment

Üretici Parça No

C-51505NFJ-SLW-AQN

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

14 Weeks

Display Format

20 x 2

Parça Durumu

Obsolete

Supply Voltagemax

5.7 V

Polarization Mode

TRANSFLECTIVE

Yayın Yılı

2016

Number Of Characters

40

Outline LXWXH

116.00mm x 37.00mm x 15.60mm

Viewing Area Height

19 mm

Besleme Gerilimi

5.3V

Operating Temperaturemax

70 °C

Risk Rank

8

Çalışma Sıcaklığı

-20°C~70°C

Fluid Type

FSTN POSITIVE

Backlight

LED - White

Kurşunsuz Kodu

yes
