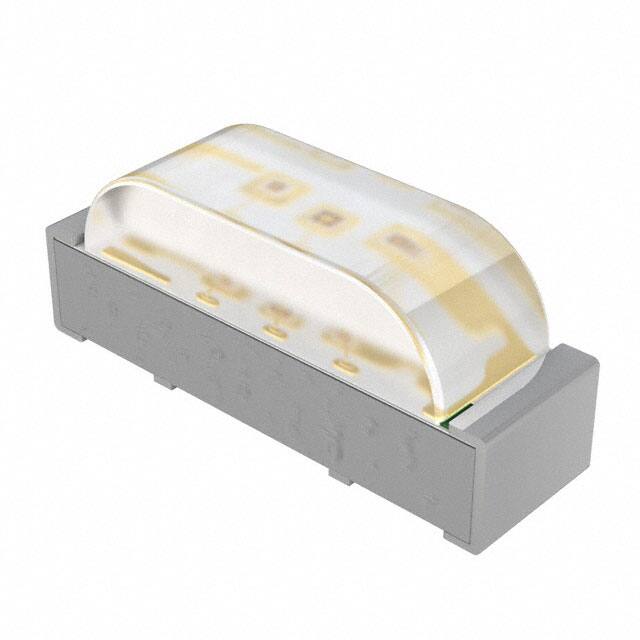

APFA2507QBDSEEZGKC

Teknik Özellikler

Optoelectronic Device Type

TRIPLE COLOR LED

Boyut / Ölçü

2.50mm Lx1.00mm W

Montaj

Surface Mount

Wavelength Peak

630nm Red 515nm Green 460nm Blue

Shape

RECTANGULAR

Forward Currentmax

0.025A

Seri

HELI Colour

Wavelengthdominant

621nm Red 525nm Green 465nm Blue

Yayın Yılı

2015

Parça Durumu

Active

Operating Temperature Min

-40°C

Voltage Forward Vf Typ

2V Red 3.3V Green 3.3V Blue

Lens Style

Rectangle with Domed Top

Kılıf / Paket

4-SMD, No Lead

RoHS Durumu

ROHS3 Compliant

Luminous Intensity

65 mcd

Operating Temperature Max

85°C

Nem Hassasiyeti (MSL)

3 (168 Hours)

Lens Size

2.10mmx0.70mm

Current Test

20mA Red 20mA Green 20mA Blue

Lens Transparency

Clear

Fabrika Tedarik Süresi

12 Weeks

Packing Method

TR, 7 INCH

Configuration

Common Anode

ECCN Kodu

EAR99

HTS Kodu

8541.40.20.00

Viewing Angle

110° Red, 130° Green, 140° Blue

Terminal Sayısı

4

Renk

Red, Green, Blue (RGB)

Yükseklik

850μm

Fonksiyon Sayısı

1

Kurşunsuz Kodu

yes

Ambalaj

Tape & Reel (TR)

Montaj Tipi

Surface Mount, Right Angle

Millicandela Rating

110mcd Red, 400mcd Green, 65mcd Blue

Lens Color

Colorless
