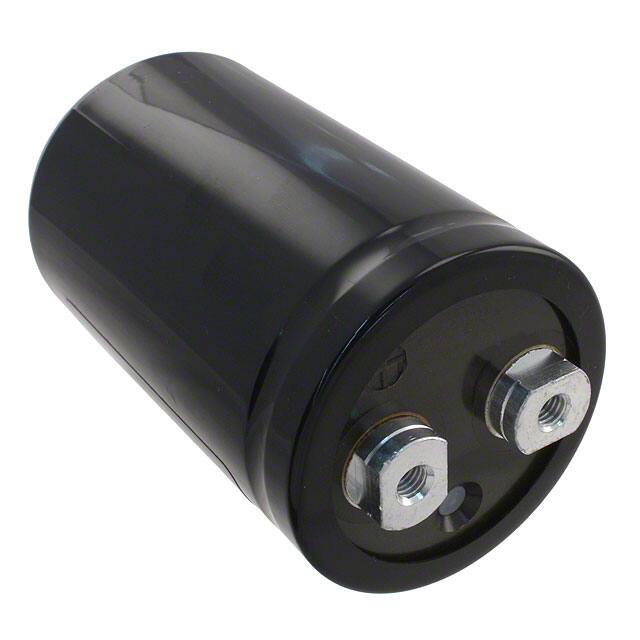

ALS30A102KE400

Teknik Özellikler

Dielectric Material

Aluminium

Polarization

Polar

Capacitor Type

ALUMINUM ELECTROLYTIC CAPACITOR

Yayın Yılı

1997

Applications

General Purpose

Gerilim

400V

Boyut / Ölçü

2.008Dia 51.00mm

Esr Equivalent Series Resistance

139mOhm @ 100Hz

ECCN Kodu

EAR99

Reference Standard

IEC60384-4

Pin Sayısı

2

Parça Durumu

Active

Lead Length

5.5mm

Life Hours

5000 hours

Kapasitans

1000μF

Lead Spacing

0.874 22.20mm

Terminal

Screw

Leakage Current

2.4mA

Çalışma Sıcaklığı

-40°C~85°C

Ripple Current High Frequency

10.3A @ 10kHz

Empedans

98mOhm

Terminal Sayısı

2

Seri

ALS30

Voltage Rated Ac

400V

Montaj

Chassis Mount

Ripple Current Low Frequency

5.8A @ 100Hz

Lead Diameter

13 mm

Tolerans

±20%

RoHS Durumu

ROHS3 Compliant

Ripple Current

5.8A

Voltage Rated Dc

400V

Maks. Oturma Yüksekliği

3.307 84.00mm

Lead Pitch

22.2mm

Fabrika Tedarik Süresi

18 Weeks

Çap

51mm

Test Frequency

100Hz

Montaj Tipi

Chassis Mount

Kılıf / Paket

Radial, Can - Screw Terminals

Reach Svhc

No SVHC

Yükseklik

82mm
