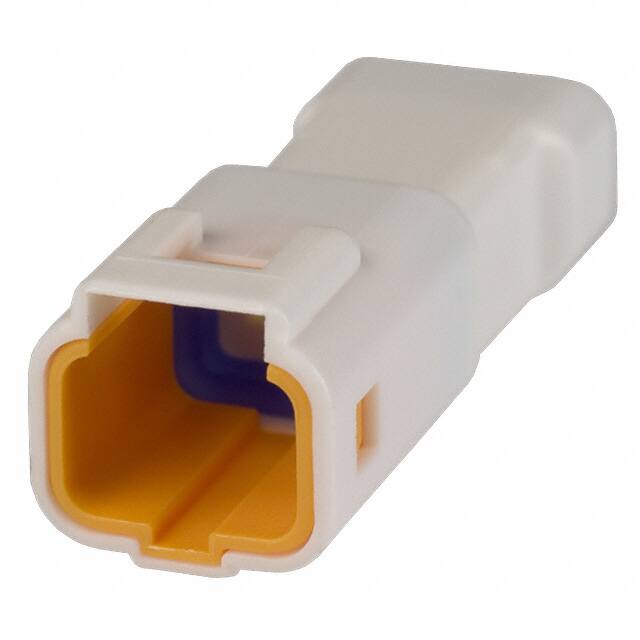

03T-JWPF-VSLE-S

Teknik Özellikler

Pitch

0.079 2.00mm

Mixed Contacts

NO

RoHS Durumu

RoHS Compliant

Contact Resistance

10mOhm

Min. Çalışma Sıcaklığı

-40°C

Seri

JWPF

Max Current Rating

3A

Uzunluk

9mm

Empty Shell

NO

Housing Material

PBT

Ul Flammability Code

94V-0

Material

Nylon

Mil Conformance

NO

Voltage Rated Ac

100V

Özellikler

JIS C 0920 Grade Level 7

Contact Finish Mating

NOT SPECIFIED

Parça Durumu

Active

Total Number Of Contacts

3

Kurşunsuz

Lead Free

Contact Termination

Crimp

Ratings

IP67

Number Of Poles

3

Sıra Sayısı

1

Iec Conformance

NO

Insulation Resistance

800MOhm

Depth

25.8mm

Option

WATERPROOF

Contact Materials

Brass

Connector Type

Plug

Orientation

Straight

Flammability Rating

UL94 V-0

Contact Type

Male Pin

Wire Gauge Max

26 AWG

Kurşunsuz Kodu

yes

Montaj

Cable, Free Hanging

Housing Color

White

Wire Gauge Min

22 AWG

Gender

Female

Yükseklik

8.1mm

Reach Svhc

No SVHC
