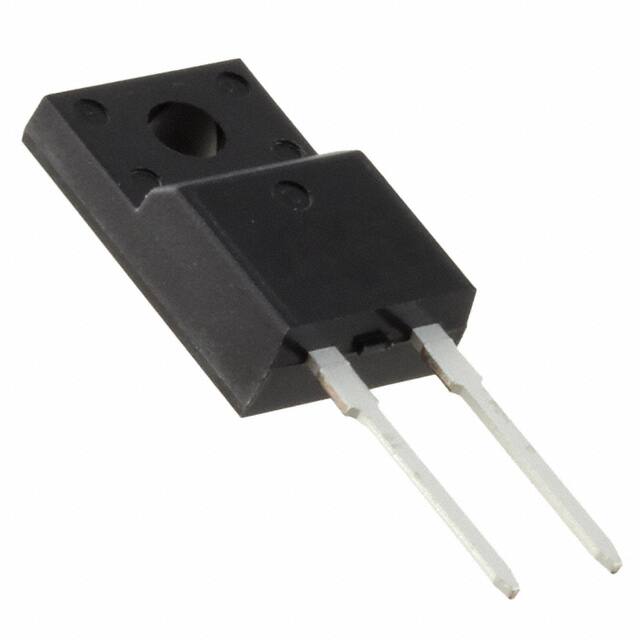

DHG10I1200PM

Teknik Özellikler

Montaj Tipi

Through Hole

Peak Nonrepetitive Surge Current

70A

Pin Sayısı

2

Max Forward Surge Current Ifsm

70A

Max Reverse Leakage Current

1.5mA

Mounting

Through Hole

Tab

Tab

Forward Current

10A

Number Of Phases

1

Genişlik

4.9mm

Eu Rohs

Compliant

Hts

8542.39.00.01

Maximum Power Dissipation Mw

30000

Peak Reverse Recovery Time Ns

75(Typ)

Automotive

No

Diode Type

Standard

Yayın Yılı

2006

Maximum Continuous Forward Current A

10

Kılıf / Paket

TO-220-2 Full Pack, Isolated Tab

Maximum Operating Temperature C

125

Speed

Fast Recovery =< 500ns, > 200mA (Io)

HTS Kodu

8541.10.00.80

Peak Forward Voltage V

2.92@20A

Max Reverse Voltage Dc

1.2kV

Pin Sayısı

3

Additional Feature

FREEWHEELING, SNUBBER DIODE

Recovery Time

75 ns

Supplier Package

TO-220FPAC

Number Of Elements

1

Uzunluk

10.36mm

RoHS Durumu

ROHS3 Compliant

Peak Nonrepetitive Surge Current A

65

Kurşunsuz Kodu

yes

Weight

2.299997g

Minimum Operating Temperature C

-55

Ppap

No

Package Length

10.36(Max)

Operating Temperature Junction

-55°C~150°C

Pcb Changed

2

Reverse Recovery Time

75 ns
