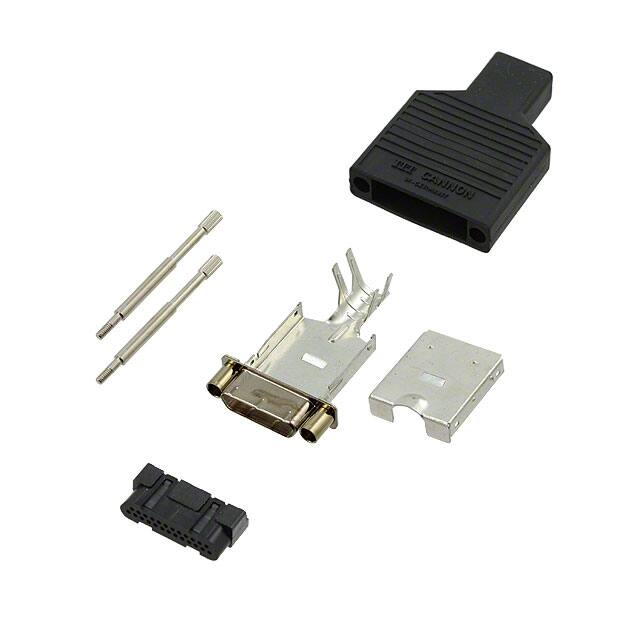

MDSM-25SC-Z11-VS1

Teknik Özellikler

Montaj Tipi

Free Hanging (In-Line)

Mil Conformance

NO

Connector Style

D-Type, Micro-D

Mixed Contacts

NO

Flammability Rating

UL94 V-0

Mating Cycles

500

Shell Material Finish

Steel, Tin-Nickel Plated

Nem Hassasiyeti (MSL)

Not Applicable

Filter Feature

NO

Note

Contacts Not Included

Gender

Receptacle

Ambalaj

Bulk

Reach Svhc

No SVHC

Seri

MDSM

Material

Steel

Orientation

Straight

Renk

Black

Contact Type

Signal

Pozisyon Sayısı

25

Wire Gauge Min

26 AWG

JESD-609 Kodu

e3

Uzunluk

30.05mm

Empty Shell

YES

Özellikler

Shielded

Shell Size Connector Layout

0.050 Pitch x 0.100 Row to Row

Iec Conformance

NO

Terminal

Crimp

Total Number Of Contacts

25

Wire Gauge Max

28 AWG

Çalışma Sıcaklığı

-55°C~125°C

Max Current Rating

2.5A

Dielectric Material

Thermoplastic

Yayın Yılı

1999

Flange Feature

Mating Side (2-56)

Contact Resistance

20mOhm

Connector Type

Receptacle for Female Contacts

Contact Plating

Gold

Kurşunsuz Kodu

yes

Parça Durumu

Active

Kılıf / Paket

Metal
