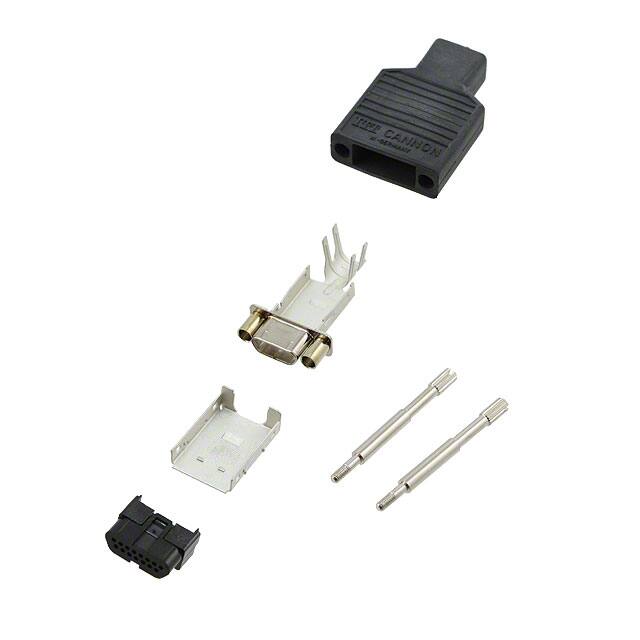

MDSM-15SC-Z11-VS1

Teknik Özellikler

Wire Gauge Max

28 AWG

Çalışma Sıcaklığı

-55°C~125°C

Mixed Contacts

NO

Max Current Rating

2.5A

Shell Size Connector Layout

0.050 Pitch x 0.100 Row to Row

Montaj Tipi

Free Hanging (In-Line)

Mil Conformance

NO

Total Number Of Contacts

15

Terminal

Crimp

Connector Style

D-Type, Micro-D

Iec Conformance

NO

Flange Feature

Mating Side (2-56)

Nem Hassasiyeti (MSL)

Not Applicable

Contact Resistance

20mOhm

Filter Feature

NO

Contact Plating

Gold

Connector Type

Receptacle for Female Contacts

Parça Durumu

Active

Dielectric Material

Thermoplastic

Flammability Rating

UL94 V-0

Yayın Yılı

1999

Shell Material Finish

Steel, Tin-Nickel Plated

Mating Cycles

500

Seri

MDSM

Material

Steel

Montaj

Free Hanging, Panel

Orientation

Straight

Gender

Receptacle

Kılıf / Paket

Metal

Note

Contacts Not Included

Fabrika Tedarik Süresi

13 Weeks

Akım Değeri

2.5A

Ambalaj

Bulk

Reach Svhc

No SVHC

Insulation Resistance

5GOhm

Additional Feature

COMPATIBLE CONTACTS: MDS-S-TS; MDS-S-RL

Uzunluk

23.7mm

RoHS Durumu

RoHS Compliant

Empty Shell

YES

Ul Flammability Code

94V-0
