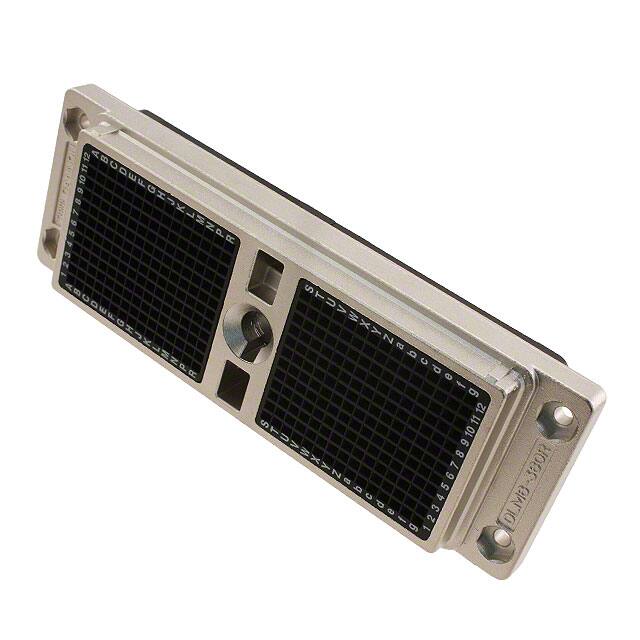

DLM6-360R

Teknik Özellikler

Üretici Parça No

DLM6-360R

Ambalaj

Bulk

Connector Type

Housing for Non-Gendered Contacts

Sıra Sayısı

12

Polarization Key

POLARIZED HOUSING

Insulation Resistance

5000000000Ohm

Insertion Forcemax

ZIF N

Pitch

0.100 2.54mm

Pozisyon Sayısı

360

Fabrika Tedarik Süresi

8 Weeks

Part Life Cycle Code

Active

REACH Uyumluluk Kodu

compliant

Din Conformance

NO

Insulator Color

BLACK

Body Depth

0.81 inch

Contact Resistance

15mOhm

Parça Durumu

Active

Rohs Code

Yes

Kurşunsuz Kodu

yes

Rated Current Signal

5A

Wire Size Max

18 AWG

Nem Hassasiyeti (MSL)

Not Applicable

Contact Materials

NOT SPECIFIED

Ihs Manufacturer

ITT CANNON

Withdrawl Forcemin

ZIF N

Reliability

COMMERCIAL

Insulation Materials

GLASS FILLED POLYETHYLENE

Contact Pattern

RECTANGULAR

Body Length Or Diameter

4.921 inch

Filter Feature

NO

Risk Rank

2.29

Manufacturer Series

DLM6

Wire Sizemax

18 AWG

Yayın Yılı

1999

Wire Size Min

42 AWG

Dielectric Withstanding Voltage

1200VAC V

Operating Temperaturemax

105 °C

Total Number Of Contacts

360

Additional Feature

COMPATIBLE CONTACTS:110238-0485;110238-0402, POLARIZATION AVAILABLE, EMI/RFI SHIELDED

JESD-609 Kodu

e4
