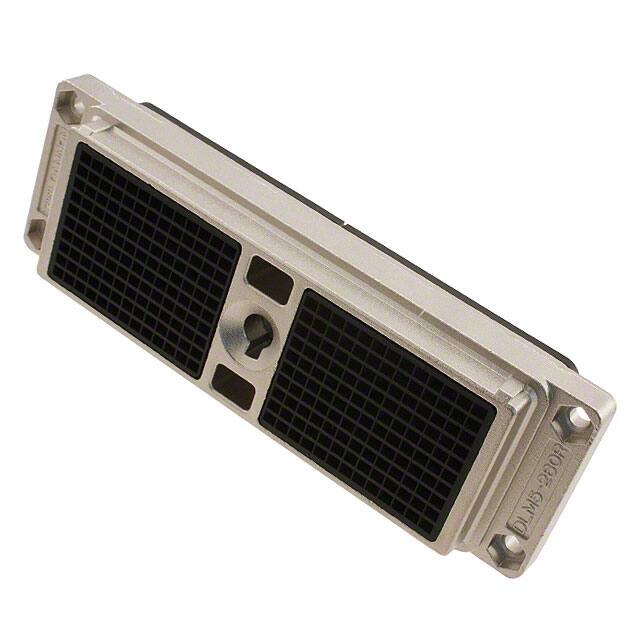

DLM5-260R

Teknik Özellikler

Total Number Of Contacts

260

Additional Feature

COMPATIBLE CONTACTS:110238-0485;110238-0402, POLARIZATION AVAILABLE, EMI/RFI SHIELDED

Durability

10000 Cycles

Contact Design

PREASSEM CONN

Plating Thickness

50μin

Depth

20.55mm

Connector Usage

Receptacle

Iec Conformance

NO

Terminal Stili

Crimp

Özellikler

Actuating Camshaft Socket, Shielding, Zero Insertion Force (ZIF)

Contact Plating

Gold

Body Length

4.255 inch

Tip

Rectangular

Shell Material

METAL

Termination Type

CRIMP

Seri

DLM

Note

Contacts Not Included

Contact Finish Mating

GOLD (50)

Montaj Tipi

Panel Mount

Housing Material

Thermoplastic

Empty Shell

YES

Bodyshell Style

RECEPTACLE

Body Breadth

1.378 inch

Operating Temperaturemin

-55 °C

Genişlik

35mm

Üretici Parça No

DLM5-260R

Connector Type

Housing for Non-Gendered Contacts

Polarization Key

POLARIZED HOUSING

Insertion Forcemax

ZIF N

Radyasyon Dayanımı

No

Pitch

0.100 2.54mm

Fabrika Tedarik Süresi

7 Weeks

Part Life Cycle Code

Active

REACH Uyumluluk Kodu

compliant

Insulator Color

BLACK

Body Depth

0.81 inch

Body Orientation

Straight

Wire Size

42 to 18, 42 AWG

Rated Current Signal

5A

Max Current Rating

5A
