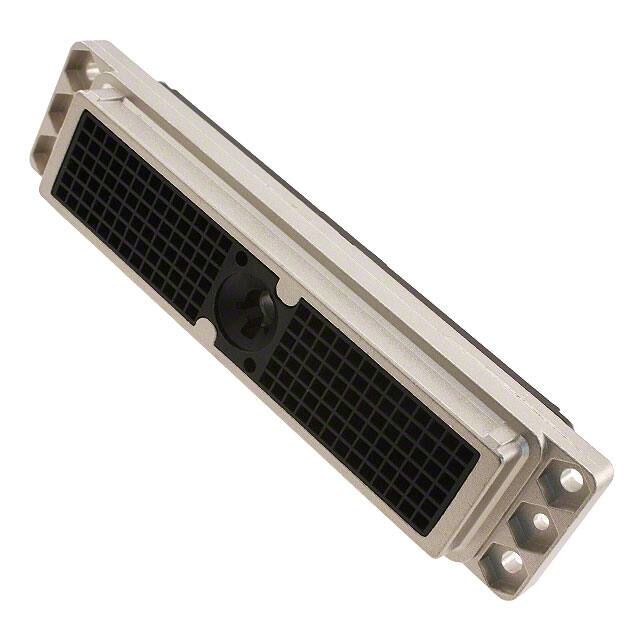

DLM1-156R

Teknik Özellikler

Dielectric Withstanding Voltage

1200VAC V

Current Rating Max

5(A)

Operating Temperaturemax

105 °C

Yayın Yılı

1998

Wire Sizemax

18 AWG

Manufacturer Series

DLM1

Reach Svhc

No SVHC

Risk Rank

2.3

Filter Feature

NO

Wire Gauge

18-42(AWG)

Number Of Contacts

156(POS)

Contact Pattern

RECTANGULAR

Min. Çalışma Sıcaklığı

-55°C

Wire Gauge Max

42 AWG

Contact Materials

Copper

Kurşunsuz

Lead Free

Ihs Manufacturer

ITT CANNON

Reliability

COMMERCIAL

Gender

F

Withdrawl Forcemin

ZIF N

Nem Hassasiyeti (MSL)

Not Applicable

Wire Gauge Min

18 AWG

Kurşunsuz Kodu

no

Rohs Code

Yes

Parça Durumu

Active

Nominal Gerilim

1.2kV

Max Current Rating

5A

Rated Current Signal

5A

Body Orientation

Straight

Body Depth

0.81 inch

Insulator Color

BLACK

Contact Resistance

15mOhm

Part Life Cycle Code

Active

Fabrika Tedarik Süresi

21 Weeks

Operating Temp Range

-55C to 105C

Din Conformance

NO

REACH Uyumluluk Kodu

compliant

Pitch

0.100 2.54mm

Pozisyon Sayısı

156

Insertion Forcemax

ZIF N
