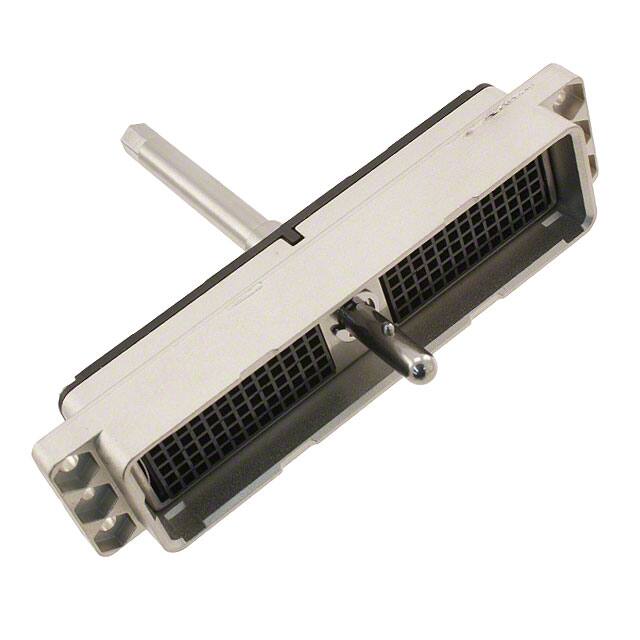

DLM1-156P

Teknik Özellikler

Note

Contacts Not Included

Termination Type

CRIMP

Reference Standard

UL

Seri

DLM

Wire Sizemin

42 AWG

Shell Material

METAL

Contact Gender

MALE

Tip

D-Subminiature

Özellikler

Actuating Camshaft, Shielding, Zero Insertion Force (ZIF)

Contact Plating

Gold

Insulator Material

GLASS FILLED POLYETHYLENE

Montaj Stili

Cable

Body Length

4.255 inch

Rad Hardened

No

Product Depth Mm

90(mm)

Plug Receptacle

PIN

Connector Usage

Plug

Iec Conformance

NO

Terminal Stili

Crimp

Plating Thickness

50μin

Number Of Rows Loaded

6

Additional Feature

ZIF, COMPATIBLE CONTACTS:030-2416-003; 030-2410-003; 110238-0482

Pitch Mm

2.54(mm)

Operating Temperature Max

105°C

Durability

10000 Cycles

Contact Design

PREASSEM CONN

Total Number Of Contacts

156

Product Height Mm

24.8(mm)

Operating Temperature Min

-55°C

Number Of Terminals

156

Operating Temperaturemin

-55 °C

Body Breadth

0.977 inch

Empty Shell

YES

Bodyshell Style

PLUG

Housing Material

Metal

Termination Method

Crimp

Mating Contact Pitch

0.1 inch

Mixed Contacts

NO

Montaj Tipi

Panel Mount

Ul Flammability Code

94V-0
