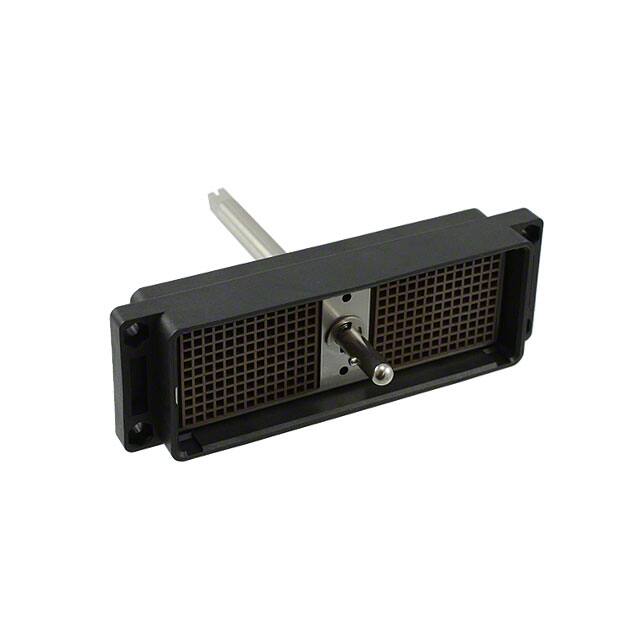

DL5-260P

Teknik Özellikler

Wire Gauge Max

42 AWG

Contact Materials

Copper

Insulation Resistance

5000000000Ohm

Orientation

Straight

Pitch

0.100 2.54mm

Product Length Mm

108(mm)

Genişlik

35mm

Number Of Contacts

260(POS)

Dielectric Withstanding Voltage

1200VAC V

Polarization Key

POLARIZED HOUSING

Housing Material

Thermoplastic

Connector Type

Housing for Non-Gendered Contacts

Çalışma Sıcaklığı

-55 to 105 °C

Fabrika Tedarik Süresi

9 Weeks

Pozisyon Sayısı

260

Insulator Material

GLASS FILLED POLYETHYLENE

Din Conformance

NO

Connector Usage

Plug

Pitch Mm

2.54(mm)

Shell Material

PLASTIC

Number Of Rows Loaded

10

Total Number Of Contacts

260

Reach Svhc

No SVHC

Note

Contacts Not Included

Filter Feature

NO

Mixed Contacts

NO

Mounting

Panel Mount

Nominal Gerilim

1.2kV

Wire Sizemin

42 AWG

Plating Thickness

50μin

Material

Plastic

Contact Plating

Gold

Nem Hassasiyeti (MSL)

Not Applicable

Operating Temp Range

-55C to 105C

Gender

Male

Mounting Option1

LOCKING

Body Orientation

Straight

Iec Conformance

NO

Depth

77.36mm

Part Life Cycle Code

Active
